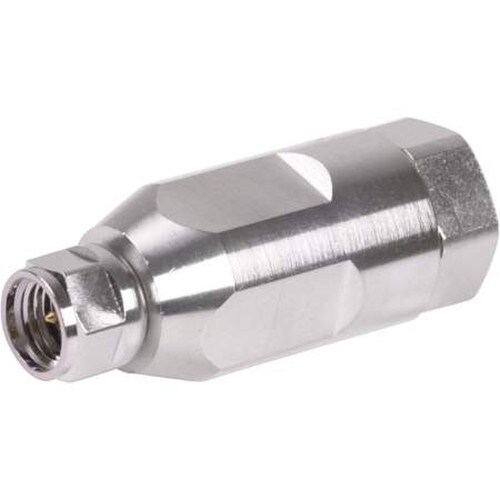

CommScope SMA Male 1/4" Superflex (F1TSM-C)

Introducing the CommScope SMA Male 1/4" Superflex (F1TSM-C)

Upgrade your wireless and radiating connector system with the high-quality CommScope SMA Male 1/4" Superflex (F1TSM-C). Designed for professionals who demand the best in performance and reliability, this connector is part of the renowned HELIAX® product series and is compatible with FSJ1-50A cable family. With its gold-plated inner contact and trimetal outer contact plating, this connector ensures optimal signal transmission and durability.

Key Features and Benefits

• High-quality materials for maximum performance and longevity
• Gold-plated inner contact and trimetal outer contact plating
• Compatible with FSJ1-50A cable family
• 50-ohm cable and connector impedance
• Operating frequency band of 0 – 6000 MHz
• Excellent shielding effectiveness of -110 dB
• Designed, manufactured, and distributed under ISO 9001:2015 quality management system
• ROHS, CHINA-ROHS, and UK-ROHS compliant

Technical Specifications

The CommScope SMA Male 1/4" Superflex (F1TSM-C) boasts impressive technical specifications, including a maximum operating frequency of 6000 MHz, a peak power of 5 kW, and a shielding effectiveness of -110 dB. With a connector retention tensile force of 101 lbf and a coupling nut proof torque of 15.046 in lb, this connector is built to withstand the rigors of professional use.

Environmental Specifications

Designed to perform in a wide range of temperatures, the F1TSM-C operates between -55 °C to +85 °C (-67 °F to +185 °F) and can be stored between -65 °C to +125 °C (-85 °F to +257 °F). This connector has passed various environmental tests, including corrosion, moisture resistance, thermal shock, and vibration, ensuring its durability and reliability in various conditions.

Regulatory Compliance and Certifications

The CommScope SMA Male 1/4" Superflex (F1TSM-C) is designed, manufactured, and distributed under the ISO 9001:2015 quality management system, ensuring the highest standards in production and quality control. Additionally, this connector is ROHS, CHINA-ROHS, and UK-ROHS compliant, meeting strict environmental and safety regulations.

Don't settle for less when it comes to your wireless and radiating connector system. Upgrade to the CommScope SMA Male 1/4" Superflex (F1TSM-C) today and experience the difference in performance and reliability that professionals trust. Order now and elevate your connectivity to new heights!
