CommScope SureGround Grounding Kit 7/8in (SG78-06B2A)
- Brand: CommScope
- P\N: SG78-06B2A
- UPC: 888063840302
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope SureGround Grounding Kit 7/8in (SG78-06B2A)

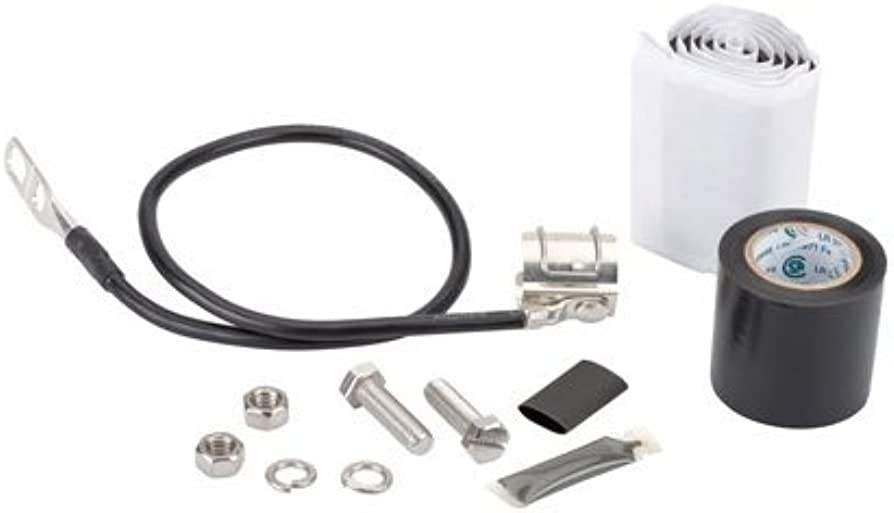

COMMSCOPE's SG78-06B2A SureGround for 7/8 inch aluminum or copper, corrugated or smooth cable with 24 in #6 copper ground wire lead. Includes factory attached two-hole lug.
Specifications
Product Classification
| Product Type | Grounding kit |
| Product Brand | SureGround® |
| Ordering Note | CommScope® standard product (Global) |
General Specifications
| Bonding Conductor Jacketing Material | PVC |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | 6 gauge |
| Cable Type | Corrugated | Smoothwall |
| Color | Black |
| Grounding Kit Type | SureGround® Grounding Kits |
| Grounding Strap Material | Tinned copper |
| Harmonized System (HS) Code | 85366910 (Coaxial cable and other coaxial electric conductors) |
| Lug Attachment | Factory attached |
| Lug Type | Two-hole lug |
| Thread Size | 3/8 in | M10 |
Dimensions
| Bonding Conductor Length | 609.6 mm | 24 inch |
| Cable Jacketing Removal Length, maximum | 38.1 mm | 1.5 inch |
| Cable Jacketing Removal Length, minimum | 38.1 mm | 1.5 inch |
| Compatible Diameter, maximum | 28.702 mm | 1.13 inch |
| Compatible Diameter, minimum | 26.67 mm | 1.05 inch |
| Nominal Size | 7/8 inch |
Electrical Specifications
| Current Handling | Tested to withstand 100,000 amps peak current surge |
| Current Handling Test Method | MIL-STD-1757 |
| Grounding, Bonding and Shielding Test Method | MIL-STD-188-124A |
| Lightning Protection Test Method | IEC 1024-1 |
Material Specifications
| Locking Bail Material | Stainless steel |
| Rivet Material | Tinned copper |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Blowing Rain Test Method | MIL-STD-810, Method 506 |
| Corrosion Test Method | MIL-STD-1344, Method 1001 |
| Freezing Rain/Icing Test Method | MIL-STD-810, Method 521 |
| Humidity Test Method | MIL-STD-1344, Method 1002 |
| Immersion Test Method | IEC 60529:2001, IP68 |
| UV Resistance Test Method | MIL-STD-810, Method 505 |
| Vibration Test Method | MIL-STD-202, Method 214 |
| Weatherproofing Method | Butyl and electric tape |
Packaging and Weights
| Height, packed | 228.6 mm | 9 inch |
| Width, packed | 215.9 mm | 8.5 inch |
| Length, packed | 58.42 mm | 2.3 inch |
| Included | Grounding kit | Hardware | Lug | One roll of 2 in PVC tape | One roll of 24 in butyl rubber tape |
| Packaging quantity | 1 |
| Weight, gross | 0.62 kg | 1.367 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
