CommScope Termination Load 0-6000 MHz 2 Watt 4.3-10 Male (T-2-UW-43-M)

  • Brand: CommScope
  • P\N: T-2-UW-43-M
  • UPC: 729198745998
(0)No Reviews yet

Availability: In Stock


Your Price: $64.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

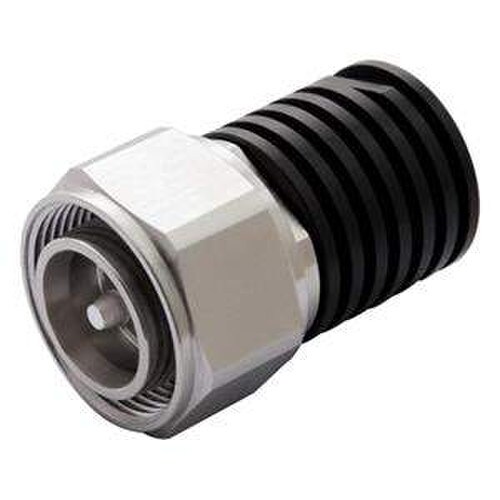

CommScope Termination Load 0-6000 MHz 2 Watt 4.3-10 Male (T-2-UW-43-M)

Key Features and Benefits

Experience the perfect balance of performance and durability with the CommScope Termination Load. Designed for both indoor and outdoor applications, this high-quality termination load ensures optimal signal integrity and reliability in a compact, easy-to-install package.

  • Wide operating frequency band (0-6000 MHz) for versatile use
  • 2-watt maximum power for reliable performance
  • Compact design for easy installation and minimal space requirements
  • High-quality materials and construction for long-lasting durability
  • Compliant with international standards for quality and safety

Technical Specifications

The CommScope Termination Load is a high-performance device with a wide range of technical specifications:

  • Device Type: Termination Load
  • Application: Indoor/Outdoor
  • Color: Black
  • Inner Contact Plating: Silver
  • Interface: 4.3-10 Male
  • Outer Contact Plating: Trimetal
  • Dimensions: Length - 38 mm (1.496 in), Diameter - 20 mm (0.787 in)
  • Electrical Specifications: Average Power at Temperature - 1.7 W @ 60 °C, Impedance - 50 ohm, Operating Frequency Band - 0 - 6000 MHz, VSWR - 1.15
  • Environmental Specifications: Operating Temperature - -35 °C to +50 °C (-31 °F to +122 °F), Relative Humidity - Up to 100%, Ingress Protection Test Method - IEC 60529:2001, IP65
  • Packaging and Weights: Height, packed - 68 mm (2.677 in), Width, packed - 53 mm (2.087 in), Length, packed - 58 mm (2.283 in), Weight, gross - 0.08 kg (0.176 lb), Weight, net - 0.06 kg (0.132 lb)
  • Regulatory Compliance/Certifications: ISO 9001:2015, ROHS, CHINA-ROHS, UK-ROHS

Upgrade your communication system with the CommScope Termination Load and experience the difference in performance and reliability. With its wide operating frequency band, compact design, and high-quality construction, this termination load is the perfect addition to any professional's toolkit. Don't settle for less - invest in the best with the CommScope Termination Load. Order your CommScope Termination Load today and experience the difference in quality and performance!
