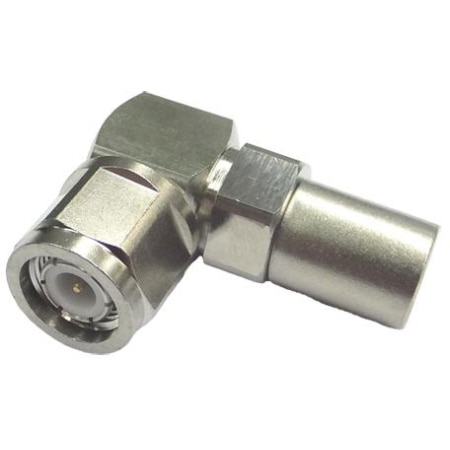

CommScope TNC Male Right Angle for CNT-400 Braided Cable (400BPTR-C-CR)

Introducing the CommScope TNC Male Right Angle Connector for CNT-400 Braided Cable (400BPTR-C-CR)

Upgrade your cable connections with the high-quality CommScope TNC Male Right Angle Connector for CNT-400 Braided Cable. Designed to provide a secure and reliable connection, this connector is perfect for professionals who demand the best performance from their equipment. With its gold-plated inner contact and trimetal outer contact plating, this connector ensures optimal signal transmission and durability.

Key Features and Benefits

• Compatible with CNT-400 braided cable
• Right angle body style for easy installation in tight spaces
• Gold-plated inner contact for superior signal transmission
• Trimetal outer contact plating for enhanced durability
• Supports operating frequency band of 0 – 6000 MHz
• 50 ohm cable and connector impedance
• 500 V maximum RF operating voltage

Technical Specifications

• Dimensions: 39.55 mm x 16.5 mm x 29.56 mm
• Weight: 48.56 g
• Operating Temperature: -40 °C to +85 °C
• Storage Temperature: -65 °C to +125 °C
• Insertion Loss, typical: 0.05 dB
• Return Loss/VSWR: 1.083 (0-3000 MHz), 1.135 (3000-6000 MHz)
• Connector Retention Tensile Force: 330 N
• Interface Durability: 500 cycles

Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, the CommScope TNC Male Right Angle Connector for CNT-400 Braided Cable is a reliable and high-performance solution for your cable connection needs. Its right angle design allows for easy installation in tight spaces, while its gold-plated inner contact and trimetal outer contact plating ensure optimal signal transmission and durability.

With its wide operating frequency band and 50 ohm impedance, this connector is suitable for a variety of applications, including telecommunications, networking, and more. Its robust construction and environmental specifications ensure that it can withstand harsh conditions and provide reliable performance over time.

Don't settle for subpar cable connections – upgrade to the CommScope TNC Male Right Angle Connector for CNT-400 Braided Cable today and experience the difference in quality and performance. Click the "Add to Cart" button now to secure your connector and enhance your cable connections!
