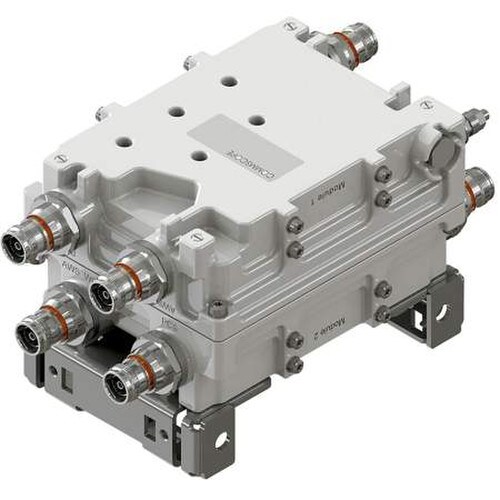

CommScope Twin Diplexer PCS/AWSplusWCS dc Sense 4.3-10 (CBC1923T-DS-43)
- Brand: CommScope
- P\N: CBC1923T-DS-43
- UPC: 646444323499
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope Twin Diplexer PCS/AWSplusWCS dc Sense 4.3-10 (CBC1923T-DS-43)
Experience the power of advanced technology with the CommScope Twin Diplexer PCS/AWS+WCS dc Sense 4.3-10. This high-performance device is designed to enhance your communication systems, providing you with superior signal quality and reliability.
Key Features
- New 4.3-10 connectors for improved PIM performance and size reduction
- Automatic dc switching with dc sense
- BTS-to-feeder and feeder-to-antenna application
- Convertible mounting brackets
Upgrade your communication systems with the CommScope Twin Dipixer PCS/AWS+WCS dc Sense 4.3-10. Experience the difference that advanced technology can make in your operations.
Don't wait. Enhance your communication systems with the CommScope Twin Diplexer today!
Specifications
Product Classification
| Product Type | Diplexer |
General Specifications
| Product Family | CBC1923 |
| Color | Gray |
| Common Port Label | Common |
| Modularity | 2-Twin |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 176.5 millimeter | 6.949 inch |
| Width | 140 millimeter | 5.512 inch |
| Depth | 101 millimeter | 3.976 inch |
| Ground Screw Diameter | 6 millimeter | 0.236 inch |
Electrical Specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | PCS 1900 | TDD 1900 | WCS 2300 |
Electrical Specifications, Common Port
| Composite Power, RMS | 250 W |
Electrical Specifications, dc Power/Alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Voltage | 7–30 Vdc |
Electrical Specifications, AISG
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 15 dB |
Electrical Specifications
| Sub-module | 1 | 2 | 1 | 2 |
|---|---|---|
| Branch | 1 | 2 |
| Port Designation | PCS | AWS-WCS |
| License Band | PCS 1900, Band Pass | AWS 1700, Band Pass WCS 2300, Band Pass |
Electrical Specifications, Band Pass
| Frequency Range, MHz | 1850-1995 | 1695–1780 2110–2200 2305–2360 |
|---|---|---|
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Total Group Delay, typical, ns | 13 | 12 |
| Return Loss, typical, dB | 22 | 22 |
| Isolation, typical, dB | 58 | 53 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 2,000 | 2,000 |
| 3rd Order PIM, minimum, dBc | -161 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | |
| Higher Order PIM, minimum, dBc | -161 | |
| Higher Order PIM Test Method | 2 x 20 W CW tones |
Material Specifications
| Finish | Painted |
Mechanical Specifications
| Wind Loading @ Velocity, frontal | 33.0 N @ 150 km/h (7.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.0 N @ 150 km/h (2.9 lbf @ 150 km/h) |
Environmental Specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and Weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.5 kg | 1.102 lbs. |
| Volume | 2.5 L |
| Weight, without mounting hardware | 3.8 kg | 8.378 lbs. |
