Comprod 470-490 MHz Yagi Antenna (430-704)
- Brand: Comprod
- P\N: 430-70 4
- UPC: 729198334703
Do you have questions?
Please contact our experts for assistance.
Description
Description

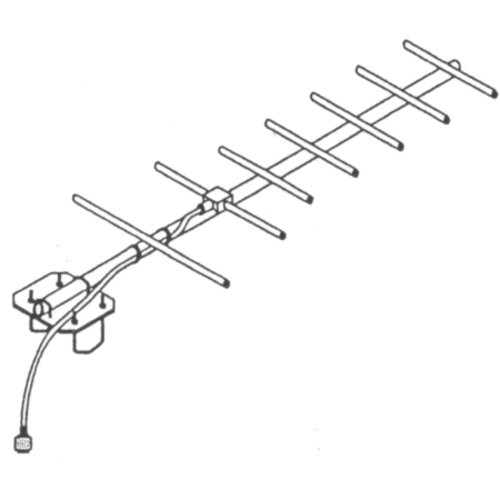

COMPROD 470-490 MHz yagi antenna with 10 dB gain. 7 element. 45 inches in length, and 14.5 inches Width (1/2 Wave Spacing).
Key Features
Key Features
- 406-512 MHz Specific Frequency, 62 deg Horizontal Beamwidth, 1.5:1 Maximum VSWR, 350 W Maximum Power Rating, and DC Ground Lightning Protection.
- N Male RF Connectors, 10.0 dBd Nominal Gain, 24 MHz Bandwidth, Vertical or Horizontal polarization, and 48º Vertical Beamwidth.
- 20 dB Front to Back, Directional Pattern, 50 Ohms Nominal Impedance, 150 mph Rated Wind Velocity (No Ice), and 110 mph rated wind velocity (0.5" of ice).
- 127-85 Clamp Mounting hardware included.
