DIRECTV SWM 16 Channel Single Wire Multiswitch (SWM16)
- Brand: DIRECTV
- P\N: SWM-16
- UPC: 874409002480
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
DIRECTV SWM 16 Channel Single Wire Multiswitch (SWM16)
Key Features and Benefits
Experience the revolution in satellite TV distribution with the DIRECTV SWM16. This innovative multiswitch allows for the distribution of up to 16 coax outputs, all through just four coax cables using SWM technology. What used to require a mass rewiring can now be accomplished through four simple coax cables. This system can support up to 16 DIRECTV satellite tuners, or 8 DVRs, making it an ideal solution for large households or small businesses.
- Single wire technology allows for less cabling and fewer holes in the wall
- Compatible with DIRECTV SL3 & SL5 satellite dishes (does NOT work with SWM dishes)

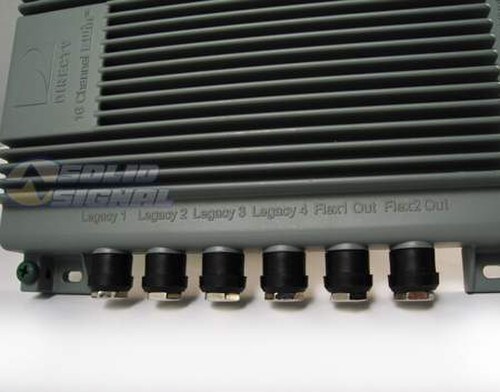

- Provides four legacy outputs for older non-SWM equipment
- Turns a standard SL5 or SL3 dish into a DIRECTV SWM system
- Works well with SWM splitters only (Not included)
- Requires the SWM PI-29 29v Power Inserter (Not included)
- Compatible with HR24H24H25C31C41HR34HR44HR23HR54H23HR22H21R16D12H20 w/.2042 Firmware Update
Technical Specifications
The SWM16 weighs just 1.9 pounds, making it a lightweight and compact solution for your satellite TV distribution needs. It's designed to work with DIRECTV SL3 & SL5 satellite dishes and can support up to 16 DIRECTV satellite tuners, or 8 DVRs. Please note that this system does not work with SWM dishes and requires the SWM PI-29 29v Power Inserter, which is not included.
With the SWM16, you can turn a standard SL5 or SL3 dish into a DIRECTV SWM system. It also provides four legacy outputs for older non-SWM equipment. This product is compatible with HR24H24H25C31C41HR34HR44HR23HR54H23HR22H21R16D12H20 w/.2042 Firmware Update.
Experience the convenience and efficiency of single wire technology. Less cabling means fewer holes in the wall and a cleaner, more streamlined setup. The SWM16 works well with SWM splitters only, which are not included.
Upgrade your satellite TV distribution system with the DIRECTV SWM16. With its innovative single wire technology and capacity to support multiple tuners, it's the smart choice for any DIRECTV user. Don't wait, enhance your viewing experience today!
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.govReviews
1 review
Works perfectly as expected.
by racermd
The SWM16 gets a feed from the 4-output LNB units (not the ones with the built-in SWM module) and converts that to two SWM8 segments. Internally, there's a DECA bridge so receivers can talk to others on the opposite SWM8 segment. If you need to expand beyond 16 tuners, there are "cascade" ports that allow you to add another SWM8 or SWM16 module.
