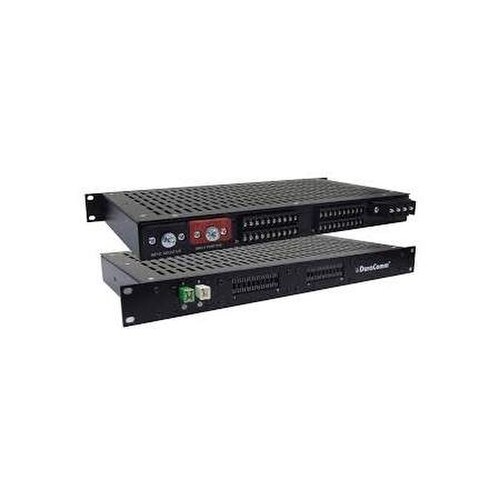

DuraComm 20-Position 1U Distribution Panel Blade Fuses 150A (DP-20ATC-2JC-12)

DuraComm 20-Position 1U Distribution Panel Blade Fuses 150A (DP-20ATC-2JC-12)

Key Features and Benefits

Introducing the DuraComm DP-20ATC Series Fuse Panel, a rack mount power distribution panel that provides up to 20 load circuits protected by individual blade-style fuses. This product is designed to offer maximum efficiency and safety in power distribution.

• Two Rack Units (3 1/2") in Vertical Height
• 20A Maximum per Position
• 75A Maximum per Panel
• Uses automotive ATO blade fuses (not supplied)
• 3-year manufacturer warranty

Technical Specifications

The DuraComm DP-20ATC Series Fuse Panel is a 1U rack mount power distribution panel. Each circuit can be fused up to 15 Amps, with 75 Amps max per 10-fuse block. Each JCASE-fused circuit (A and B) can be fused up to 40 Amps, with a total 22-circuit load of 100/150 Amps maximum. All inputs and outputs are isolated from the frame for use in positive ground, negative ground, or floating applications. The product weighs 7.09 lbs.

Flexible and Versatile

With its 20 load circuits, this panel is designed to handle a variety of applications. Whether you're using it for positive ground, negative ground, or floating applications, this panel has you covered.

Safe and Reliable

Each circuit is protected by individual blade-style fuses, ensuring the safety and longevity of your devices. Plus, with a 3-year manufacturer warranty, you can rest assured knowing that your investment is protected.

Experience the efficiency, safety, and reliability of the DuraComm DP-20ATC Series Fuse Panel. Don't wait, upgrade your power distribution system today!
