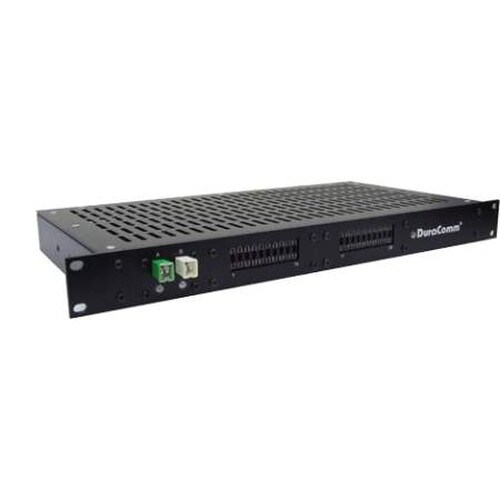

DuraComm 20-Position 1U Distribution Panel Blade Fuses (DP-20ATC-2JC-48)

The DuraComm DP-20ATC Series Fuse panel is a Rack mount (1U) power distribution panel that provides up to 20 load circuits protected by individual blade-style fuses. (ATC/ATO, ATM, Mini, Micro fuses not included). Each circuit can be fused up to 15 Amps, with 75 Amps max per 10-fuse block.
Each JCASE-fused circuit (A and B) can be fused up to 40 Amps, with a total 22-circuit load of 100/150 Amps maximum. All inputs and outputs are isolated from the frame for use in positive ground (DP-20ATC-2JC-48N), negative ground, or floating applications (DP-20ATC-2JC-12,DP-20ATC-2JC-24,DP-20ATC-2JC-48).
Key Features

• Two Rack Units ( 3 1/2") in Vertical Height
• 20A Maximum per Position
• 75A Maximum per Panel
• Uses automotive ATO blade fuses (not supplied)
