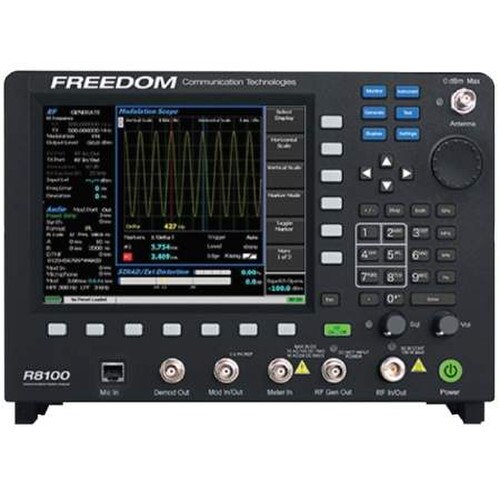

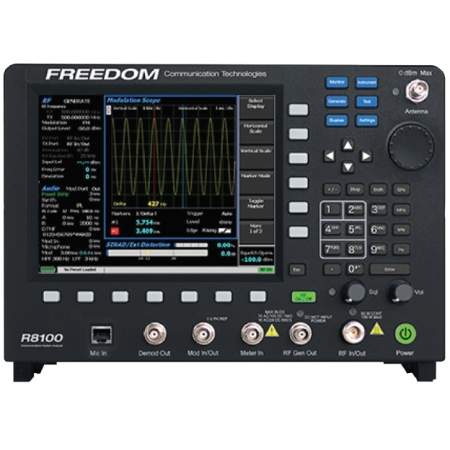

Freedom Communication System Analyzer Service Monitor (R8100)

The R8100 is the premium, ultra-portable member of our product family. It has all the functionality and test capabilities of our industry-standard R8000 communications system analyzer but also features an internal battery, premier ergonomics, and suite of advanced features that are optional on the R8000. With the R8100, there's absolutely no trade-off between benchtop power and total portability and the unit's Class 3 Mil-Spec shock and vibration rating at test to its suitability for nearly any LMR test environment. Each purchase includes a two-year manufacturer warranty.

Key Features

• Includes a tracking generator, enhanced spectrum analyzer, and a cable fault locator
• Is expandable and upgradable
• Features low phase noise and monitor & control interface
• Has a color-enhanced, high-contrast display with key measurements shown in larger, bright blue font
• This product includes the R8-ESA and the R8-CF

ACCESSORIES INCLUDED WITH EVERY UNIT:

• Telescoping Antenna & Right Angle BNC Adapter
• Microphone
• Oscilloscope Probe
• Power Cord & AC Adapter
• Cable Fault Locator Kit (R8100 only) (3dB splitter, 50-ohm load on chain w/bolt & nut, and qty 2 12-inch BNC cables)
• Internal Lithium Ion Battery (R8100 only)
• TNC-to-BNC Adapter (R8100 only)
• 12V to 16V Converter (R8100)
• 12V to 24V Converter (R8000C)

ADDITIONAL ACCESSORIES SOLD SEPARATELY:

• R8-SC Soft Carrying Case
• R8-GC Protective Glove Case
• R9-TC Transit case
• BATT8100 Internal Battery for R8100 and R8200 (one included with unit)
• CHRG8100 Charger for R8100 and R8200 battery
• R8-VSWR Bridge Kit
