GE Critical Power 25-50A 1362W 2725W Total Efficiency Rectifier (CC109149340)
- Brand: General Electric
- P\N: CC109149340
- UPC: 729198854249
Live Chat
Contact Us
Description
Description

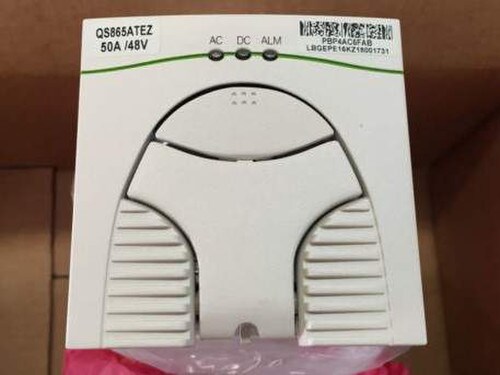

GE Critical Power QS865ATEZ (CC109149340) Total Efficiency Rectifier. The operating frequency is 45-66 Hz and a nominal output voltage is 54.5 Vdc. At 85-150 Vac, the input is 12.0A, the output current is 25A, the output power is 1362W, and the heat dissipation is 339 BTU. At 165-275 Vac, the input is 14.0A, the output current is 50A, the output power is 2725W, and the heat dissipation is 614 BTU.
CPS6000 systems are easy to setup and operate with a broad range of applications in outside plant and customer premise locations. The controller can be configured using either the front panel display, a laptop computer connected to the local port, or remotely using the Ethernet connection. Battery management features and options include slope thermal compensation, low voltage battery disconnect, battery high-temperature alarm and battery shorted cell detection. Ideally suited for applications where space and durability in harsh environments are critical, CPS6000 is available in either front or rear wiring configurations.
Key Features:
CPS6000 systems are easy to setup and operate with a broad range of applications in outside plant and customer premise locations. The controller can be configured using either the front panel display, a laptop computer connected to the local port, or remotely using the Ethernet connection. Battery management features and options include slope thermal compensation, low voltage battery disconnect, battery high-temperature alarm and battery shorted cell detection. Ideally suited for applications where space and durability in harsh environments are critical, CPS6000 is available in either front or rear wiring configurations.
Key Features:
- AC Input: 120/240V
- DC Output: 54.5V
- Continuous Amperage: 25A
- Size: 3.4x3.4 inch
- Monitoring: Yes
