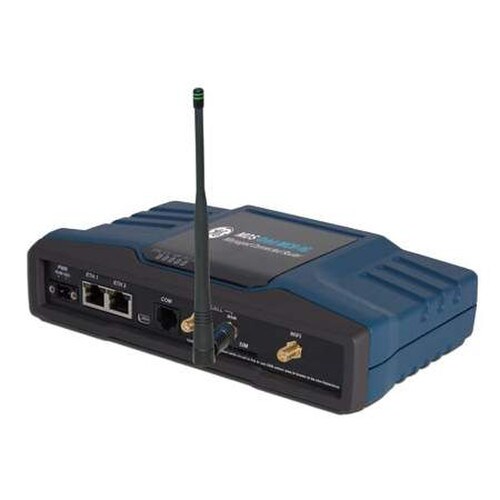

GE Orbit MDS Point-Multipoint Access Point MCR-900 (MXNX-U91-S1N)

The GE MDS Orbit MCR-900 Unlicensed, the point-multipoint access point can provide data rates from 125 Kbps to 1.26 Mbps. This unit has an effective LOS range of up to 60 miles. The MCR-900 is equipped with patent pending extremely low latency with robust proprietary Media Access specifically designed for 900 MHz communications. This model features DIN rail mounting, 2 Ethernet and 1 Serial ports.
The MCR is a highly secure, industrial grade, wireless communication product for broad-based applications including control center monitoring, well site pad operations, and video surveillance. It serves the need for localized Wi-Fi communications with a cellular back-up or backhaul option, while providing the extended temperature range and industrial-grade packaging inherent to GE MDS products. These features allow the best use of communication options at each installation site.
The MCR is well suited for a multitude of applications. For distribution substation, communications MCR's can be used for protection, automation monitoring, diagnostics, video monitoring and VoIP/IP. In a distribution automation scenario, applications include fault location, distribution asset monitoring and distributed generation integration and enablement. The MCR can also support communication backhaul via cellular (4G/3G) and unlicensed 900 MHz for advanced metering infrastructure (AMI)
Key Features

• Comprehensive security enables customers to meet their current and future requirements
• Networking capabilities extend and simplify the communications infrastructure
• Consistent packaging and configuration streamlines engineering, operations, supply chain and support
• Security capabilities include firewall, IPsec VPN, and certificate management
• Designed for harsh, rugged environments
• Easy to use interface reduces complexity of provisioning, maintenance, training, support
