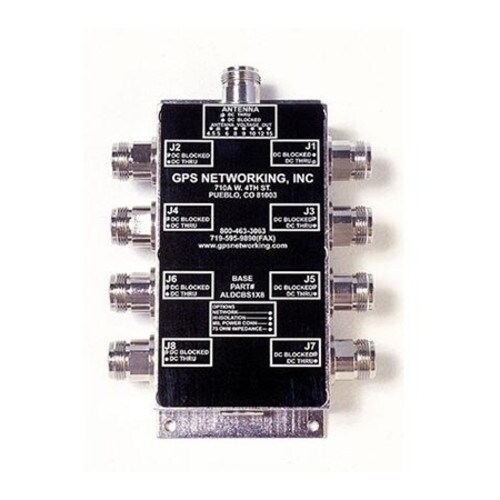

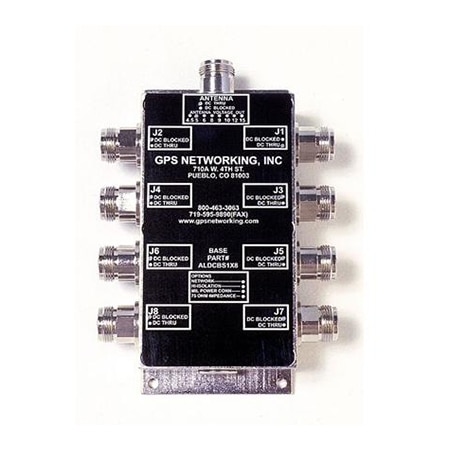

GPS Networking 1x8 GPS Active Antenna Splitter (ALDCBS1X8-BNC)

The ALDCBS1X8-BNC GPS Amplified Splitter is one input, eight output device based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS frequencies) with excellent gain flatness. In the standard configuration without external power, Output 1 (J1) passes DC from the connected GPS device through the splitter to the input (antenna port), allowing the GPS receiver to power both an active antenna and the splitters internal amplifier. The other RF outputs (J2-J8) are DC blocked and loaded with 200 ohm resistors to simulate the antenna current draw to prevent false antenna alarm faults.
Key Features

• Split 8-Way
• Frequency Range 1100-1700 MHz
• Loss 0.5 dB
• RF Connectors BNC Female
• Maximum VSWR 1.25:1
• Product Eight Port Power Dividers
