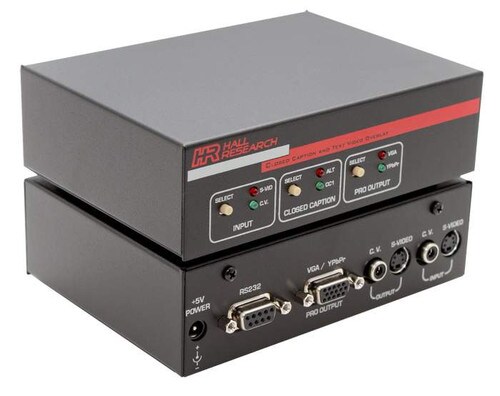

Hall Research Closed Caption Decoder-Text Video Overlay With Stream (CC-101-PRO)
- Brand: Hall Research
- P\N: CC-101-PRO
- UPC: 643765553659
Do you have questions?
Please contact our experts for assistance.
Description
Description
With this Closed Caption decoder, capture the closed captioning text (CC1 through CC4), information and then overlay it on the video output. This device is equipped with a serial port, through which the unit can display user-defined text anywhere on the screen. The unit also has internal non-volatile flash memory in which the user can store up to 10 strings of data and automatically display them either when the unit is turned on, or activate the playback via the front panel. Free Windows software is available that allows the user to define and store text in the unit's memory for playback. The unit has both S-Video and Composite Video inputs and outputs. Perfect for applications such as classrooms and digital signage applications where closed captioning decoding may not be an option (such as when projectors are used or scalers that strip-out the captioning).
Key Features
Key Features
- PRO model can stream out the Closed Caption via the RS-232 port
- Overlays user-defined text on video
- Decodes closed captioning data and overlays it on video
- RS-232 port for configuration, real-time video text overlay or streaming output of the closed caption
- Free Windows GUI software for defining and storing messages in built-in flash memory of the unit for later manual or automatic playback
- S-Video and Composite video inputs and outputs
- Front panel switches for selecting closed captioning mode and input selection
