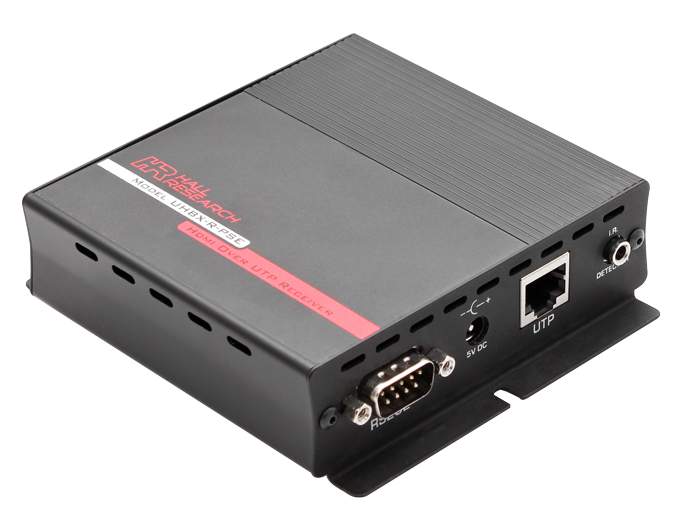

Hall Research HDBaseT Extender Receiver With Power Supply (UHBX-R-PSE)
- Brand: Hall Research
- P\N: UHBX-R-PSE
- UPC: 643765554885
Do you have questions?
Please contact our experts for assistance.
Description
Description
Hall Research HDBaseT Extender Receiver With Power Supply (UHBX-R-PSE)
Key Features and Benefits
Experience the power of seamless connectivity with the Hall Research HDBaseT Extender Receiver. This innovative device is designed to extend HDMI, bi-directional IR, full-duplex RS232, and PoH over distances of up to 150 meters (500 feet) using a single Cat6 cable. The receiver module, when paired with a compatible sender, can support virtually any resolution, making it a versatile addition to your tech arsenal.
- Extends HDMI or DVI video to 500 ft on just one Cat6
- Includes RS232 and IR extension in both directions
- Supports virtually all HDMI and DVI resolutions including 4Kx2K
- Only one end requires power, the other side is powered via UTP
- Power-over-HDBaseT meets IEEE 802.3af standard
- Sturdy metal enclosures with mounting provisions
Technical Specifications
The Hall Research HDBaseT Extender Receiver weighs just 4 pounds, making it a lightweight yet robust device. It complies with the Power-over-HDBaseT or PoH standard, meaning only one end requires a power supply. The power sourcing equipment side requires connection of an AC adapter that supplies 5v DC, while the PD or wall plate side is simply powered through the RJ45 connector from the opposite side. The full-duplex RS-232 Serial Port extension can operate at any baud rate to 115,200 (independent of video activity). The extender can also extend IR from one end to the other. IR Detector and IR Emitter cables are sold separately.
Distance Modes
The device offers two user selectable distance modes: Standard (default) and Long Reach. If the length of UTP cable is less than 100 meters (330 feet), then STD mode should be used. For lengths above 330 feet, Long Reach (L.R.) mode must be set. Long Reach setting can extend a maximum of 1080p@60 Hz, 8-bit color (does not support deep-color or 4Kx2K), RS232, IR, and Power up to 500ft (150m).
Experience the difference with the Hall Research HDBaseT Extender Receiver. It's time to upgrade your connectivity and embrace the power of extended range. Order now and take your video and data transmission to the next level.
