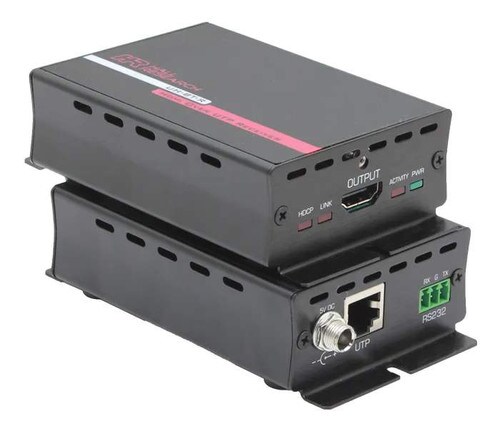

Hall Research HDMI Over UTP Extender Receiver HDBaseT Lite (UH-BT-R)

Hall Research HDMI Over UTP Extender Receiver HDBaseT Lite (UH-BT-R)

Key Features and Benefits

Experience the power of seamless connectivity with the Hall Research HDMI Over UTP Extender Receiver. This innovative device is designed to extend uncompressed HDMI video and RS-232 control signals over a single CAT5e/CAT6 UTP cable, ensuring high-quality transmission without any loss of fidelity.

• Extends HDMI (or DVI) + RS-232 over a single CAT5e/CAT6 UTP cable up to 230/328 ft (70/100 m) depending on Model
• Full HD support for 1080p deep color, 3D, and 4K UHD
• Uncompressed digital video extension guarantees 100% fidelity
• Plug and Play €“ no user configuration required
• Designed and manufactured in USA

Technical Specifications

The UH-BT-R is a part of the UH-BT and UH-BT-X series, which are designed to extend all PC and HD resolutions without compression, up to 4K UHD. Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.

• Utilizes HDBaseT„¢ Class B (HDBaseT-Lite„¢) extension technology
• Can connect to all HDBaseT„¢ and HDBaseT-Lite„¢ compliant products
• HDCP Compliant with pass-thru EDID from display back to source
• CEC pass-thru for simplified control among compatible devices
• Sturdy, compact metal enclosure with mounting provisions
• Compatible with Locking HDMI connectors
• Universal Power Supplies with Locking connectors

Additional Information

The UH-BT-R Receiver is used in conjunction with Senders for extending uncompressed HDMI video and RS-232 control signals. The extenders are comprised of a Sender (-S) and a Receiver (-R). The optional Long Reach mode (BTX Only) extends 1080p up to 492 ft / 150 m.

Experience the difference with the Hall Research HDMI Over UTP Extender Receiver. This device is not just a product, it's a solution to your connectivity needs. Don't compromise on quality and performance. Choose Hall Research for reliable, trouble-free operation. Order your UH-BT-R today!
