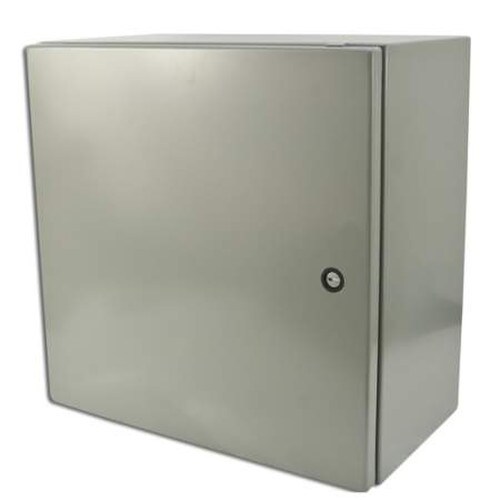

Hoffman Junction Box 30in x 30in x 8in Wall-Mount Enclosure (CSD30308)

The 30" x 30" x 8" wall-mount enclosure by Hoffman is a steel-hinged single-door wall-mount enclosure with quarter-turn latches that is ideal for machine control applications. The CSD30308 has a three-point latch system on enclosures where A is equal to or greater than 42-inches with quarter-turn and slotted latch. This enclosure is finished with ANSI 61 grey polyester powder paint on the inside and out. Hoffman's CSD30308 is designed with several features; corner-formed doors, simple easy-to-remove and install hinge pins with a built-in captivation clip, seamless foam-in-place gasket, mounting holes in the back of the body for optional external wall-mount brackets, and more.
Key Features

• 30" x 30" x 8" steel-hinged single-door wall-mount enclosure
• ANSI 61 grey polyester finish
• Removable door with hidden hinges for a clean aesthetic appearance
• High-torque thread-less studs and fasteners on door
• IP66, NEMA/EEMAC-4, 12, 13 Protection rating
• Easy-to-remove and install hinge pins with built-in captivation clips

Special Order. Non-Cancellable and Non-Returnable
