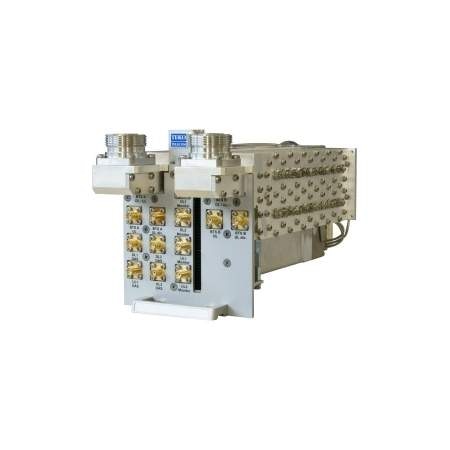

JMA Dual Active DAS Tray Point of Interface AWS-3 Band (TDTPOI-AWE-D)

JMA Wireless' Teko DAS Tray Point of Interface module (TDTPOI) is a flexible single-band and single-operator RF High Power interface used in Optical DAS to directly (no external directional coupler nor load needed) interface up to 2 base stations, either duplex or simplex, with or without diversity, SISO or MIMO 2x2. This high-power POI DAS Tray utilizes a small footprint for base station to the DAS Master Units utilizing a common sub-rack can reduce space requirements vs. passive trays as much as 75%. Optical Systems can be equipped with one DAS Tray module or more to make multiple configurations available. The DAS tray is also equipped with SW-settable attenuators for downlink/uplink level adjustment and power meter/limiter to control the input power level. It is managed as a single system, it enables remote optimization of the site parameters, provides alarming for base station failures.
Key Features

• Directly interfaces up to 2-base stations
• Supports AWS-3 band
• Features SC/APC media converter connectors
• Uses a single-mode fiber media transport

Special Order. Non-Cancellable and Non-Returnable
