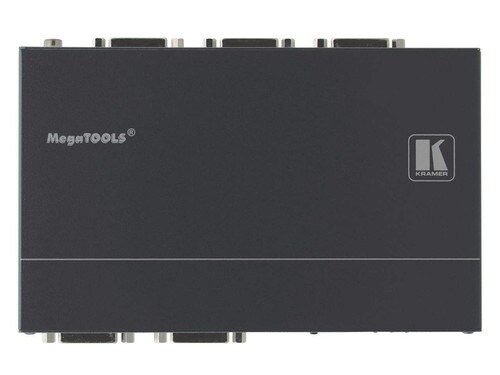

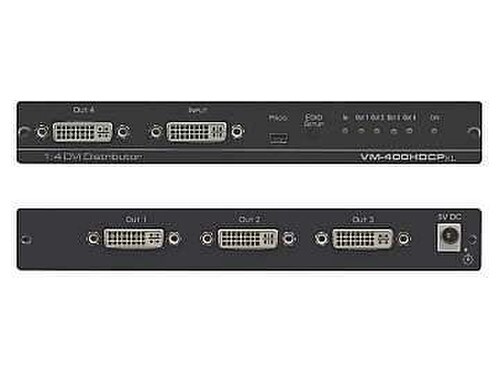

Kramer 1x4 DVI Distribution Amplifier (VM-400HDCPXL)

The VM−400HDCPxl is a 1:4 distributor for HDMI signals via single−link DVI. It takes one DVI input, equalizes and reclocks the signal and distributes it to four identical outputs. With the appropriate adapter, it distributes signals having resolutions up to 4K@60 UHD (4:2:0), WUXGA and 1080p.

The maximum data rate is 10.2Gbps (3.4Gbps per graphic channel) and supports resolution up to 4K at UHD (4:2:0), WUXGA, and 1080p. This device comes with I-EDIDPro Kramer Intelligent EDID Processing, which is an intelligent EDID handling and processing algorithm that ensures plug and play operation for HDMI systems.

For use in applications such as highly secured operation of high-quality professional AV deployments via lockable cable connections, medical market operation rooms and other critical multimedia applications, governmental market secured AV applications, rental and staging, and more.

Key Features

• Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
• Resolution Support — Up to 4K@60 UHD (4:2:0), WUXGA and 1080p.
• HDCP Compliance.
• Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling and processing algorithm that ensures Plug and Play operation for HDMI systems.
• Default EDID — For fast and efficient connection of the unit.
• 3D Pass–Through.
• USB Port — For firmware upgrading.
• High performance distributor with secured operation
• HDMI signal transmission
• I-EDIDPro Kramer Intelligent EDID Processing
• User-friendly operation, cost-effective maintenance, and easy installation
