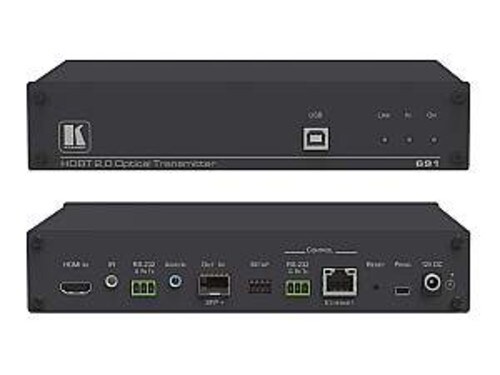

Kramer 4K60 4x2x0 HDMI MM-SM Fiber Optic Extender Transmitter (691)

This is a high−performance HDBaseT 2.0 fiber transmitter for ultra−reach extension of 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS−232, IR and stereo audio signals over either multi−mode or single−mode fiber optic. It converts all input signals into the transmitted HDBaseT 2.0 signal over fiber optics.
HDMI 2.0 and HDCP 1.4 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS"“HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display. Intelligent EDID handling, processing, and pass"“through an algorithm that ensures Plug and Play operation for HDMI source and display systems.
USB 2.0 interface data flows in both directions, allowing extension of HID (Human Interface Devices) peripheral devices, such as a mouse or a keyboard. High"“bandwidth USB peripheral devices, such as USB isochronous streaming cameras and audio devices, transfer data continuously and periodically. Delivery of their transferred data is not guaranteed by the USB standard and is subject to both USB and HDBaseT line bandwidth management limitations. When such devices are connected, check their functionality to ensure bandwidth limitations are not exceeded.
A selectable analog unbalanced stereo audio input is converted into a digital signal and added (embedded) to the transmitted HDMI signal, replacing the embedded HDMI audio input signal. This enables embedding a selectable audio source over HDMI. For example, a presenter can display a video clip and temporarily override the audio of the source media with another audio source, such as from a microphone.
Key Features

• High performance standard fiber extender
• HDMI signal, USB 2.0, Ethernet, bidirectional RS-232, and bidirectional infrared extensions
• Audio embedding (adding)
• Cost-effective maintenance
• Easy installation
