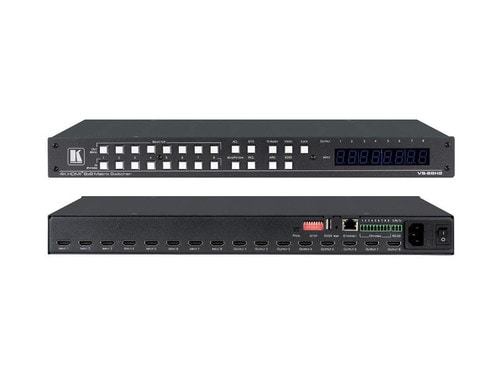

Kramer 8x8 4K HDMI HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing (VS-88H2)

Kramer 8x8 4K HDMI HDR HDCP 2.2 Matrix Switcher with Digital Audio Routing (VS-88H2)

Key Features and Benefits

Experience the power of high-performance audio and video routing with the Kramer VS-88H2. This 8x8 matrix switcher is designed for 4K@60Hz (4:4:4) HDR signals and digital audio routing, offering unmatched audio flexibility and superior video quality.

• High-Performance AV Matrix: Switches 8 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant signals to 8 4K@60Hz (4:4:4), HDR, HDMI, HDCP (2.2/1.4)–compliant outputs at up to 18G data rate.
• Kramer re–Klockingâ„¢ and Equalization Technology: Rebuilds the digital signal for longer travel distances.
• HDMI Support: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
• Independent Audio Routing: Any embedded digital audio input can be routed to any digital output, in addition to ARC sources, to produce an equivalent 16x12 audio matrix.
• Easy Step–In Collaboration Function: Plug in your device and press the Step–In button to make your device the active signal on the main display.

Technical Specifications

The Kramer VS-88H2 is a robust and reliable solution for your audio and video routing needs. It weighs 6 pounds and is designed for easy installation in a 1U rack space with included rack ears and universal 100–240V AC power supply.

• EDID Management: Individual EDID management per input. Captures and stores the EDID from a display device.
• Flexible Content Protection: Selectable HDCP per input.
• Quick Access to Common Configurations: Save up to 16 preset configurations.
• Smart Switching: Active source & acceptor detection. Automatic input selection based on priority selection or last connected input.
• Embedded Pattern Generator: With selectable patterns.
• Convenient Unit Control and Configuration Options: Local control via front panel switching, memory, lock and EDID buttons, and Input/Output LED display. Distance control via user–friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS–232 serial commands transmitted by a PC, touch screen system or other serial controller.
• Cost–Effective Maintenance: Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet or mini USB.

For optimum range and performance, use recommended Kramer cables. The Kramer VS-88H2 is a high-quality, reliable solution for all your audio and video routing needs. Upgrade your system today and experience the difference.
