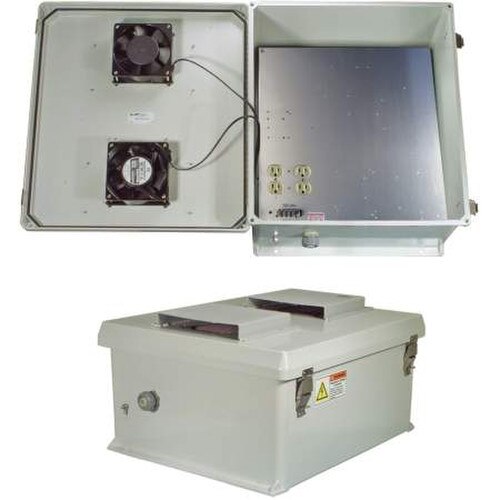

L-Com 20in x 16in x 11in 120VAC Industrial Enclosure (NB201611-10FS)

This 20" x 16" x 11" 120VAC industrial enclosure by L-Com Connectivity Product is a rugged weatherproof enclosure that is ideal for both indoor and outdoor applications. Constructed from molded halogen free self-extinguishing fiberglass reinforced polyester (FRP), it is well suited for high temperature or corrosive environments. The integral mounting flange allows it to be wall mounted as well as on a flat surface without the need for extra mounting hardware. The fully gasketed lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. Users can enjoy the physical benefits of better heat reflection and better UV resistance due to the lighter gray color of this enclosure. The contoured body provides an attractive and contemporary appearance. Due to the large size of this enclosure, it can accommodate dual sets of most access points.
To help ensure trouble-free operation of electronic equipment, proper operating temperatures inside an enclosure needs to be maintained. With the built-in Cooling Fans, internal temperatures can be better maintained. This model is ideal in hot environments. This comes with two 120 VAC cooling fans installed. The fans are controlled by HyperLink's exclusive solid state fan controller and the standard unit has a fan turn-on temperature of +90° F. The fans are controlled by an integral solid state AC relay with Zero Cross Detection for EMI reduction. No extra room for the controller is required since it is mounted underneath the plate.
Key Features

• 20" x 16" x 11" 120VAC industrial indoor/outdoor enclosure
• Wall mount or mount onto flat surface with no extra hardware required
• Large size can accommodate dual sets of most access points
• Aluminum mounting plate with two 120 VAC outlets and solid state controller cooling
• Better heat reflection and UV resistance due to lighter gray color

Special Order. Non-Cancellable and Non-Returnable
