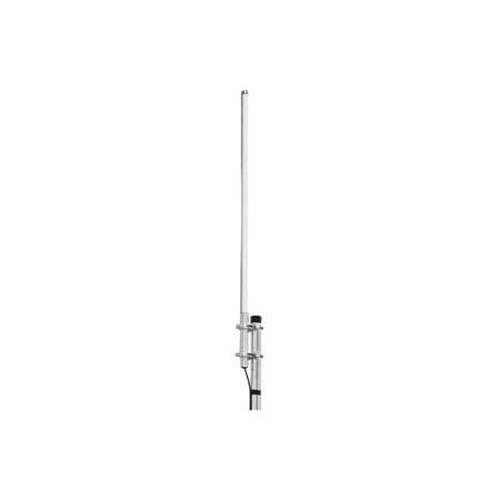

Laird 3dB Fiberglass Omni Antenna (S8963B)
- Brand: Laird Connectivity
- P\N: S8963B
- UPC: 729198674090
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Laird 3dB Fiberglass Omni Antenna (S8963B)
LAIRD's S8963B is an omnidirectional antenna operating in the 896 – 960 MHz frequency range. This fiberglass omni antenna features 3 dBd gain and maximum power input of 150 W. The S8963B Omni antenna includes a 23 in jumper made of Ultralink cable and terminated with an N Female connector. Mounting hardware is included.
Specifications
| Item Weight | 1.1 lb |
| Item Height | 30.75 in |
| Item Width | 2 in |
| Item Length | 44.75 in |
| Gain dBd | 3 dBd |
| Gain dBi (dBi) | 5.15 dBi |
| Jumper Included | Yes |
| RF Connectors | N Female |
| Polarization | Vertical |
| Specific Frequency | 896-960 MHz |
| Vertical Beamwidth (Deg) | 45 |
| Maximum VSWR | 1.5:1 |
| Maximum Rated Wind Velocity | 125 mile/h |
| Bandwidth | 64 MHz |
| Tuned Frequency (MHz) | N/A |
| Connector Placement | Pigtail |
| Lightning Protection | DC Ground |
| Electrical Downtilt | Fixed |
| Fixed Electrical Downtilt | 0 deg |
| Lateral Thrust @ RWV (lb) | Not Specified |
| Frequency Band | Cellular |
