Laird 3dB Fiberglass UHF Omnidirectional Antenna (FG4603)

  • Brand: Laird Connectivity
  • P\N: FG4603
  • UPC: 729198657826
(0)No Reviews yet

Availability: In Stock


Your Price: $280.00

Do you have questions?

Please contact our experts for assistance.

Description

Laird 3dB Fiberglass UHF Omnidirectional Antenna (FG4603)

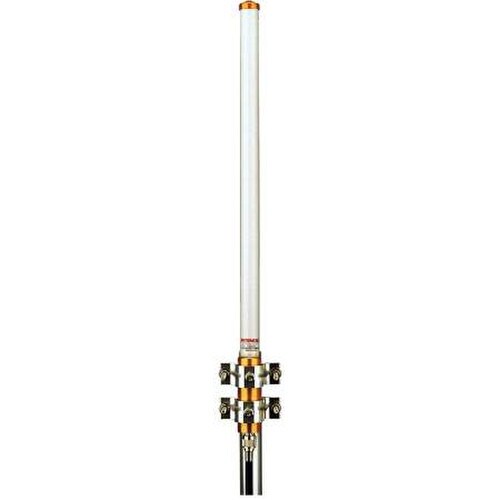

LAIRD's FG4603 3 dBd gain fiberglass omnidirectional antenna operates in the 460 – 470 MHz frequency range. The UHF omni antenna has a durable gold-anodized sleeve that will not oxidize and is terminated with an N Female connector. The maximum power input is 100 W. Order the FM1 or FM2 mount separately.

Commonly used for application in public safety and private networks this compact antenna produces high quality, focused beam provides the highest gain and best efficiency.

Specifications

Item Weight4 lbs.
Item Length44 inch
Gain dBd3 dBd
Gain dBi (dBi)5.15 dBi
Jumper IncludedNo
RF ConnectorsN Female
PolarizationVertical
Specific Frequency460-470 MHz
Vertical Beamwidth (Deg)33
Maximum VSWR2.0:1
Maximum Rated Wind Velocity125 miles/hour
Tuned Frequency (MHz)460-470
Lightning ProtectionDC Ground
Lateral Thrust @ RWV (lb)12.6
Support Pipe Dia.Not Specified
Support Pipe LengthNot Specified
Frequency BandUHF
