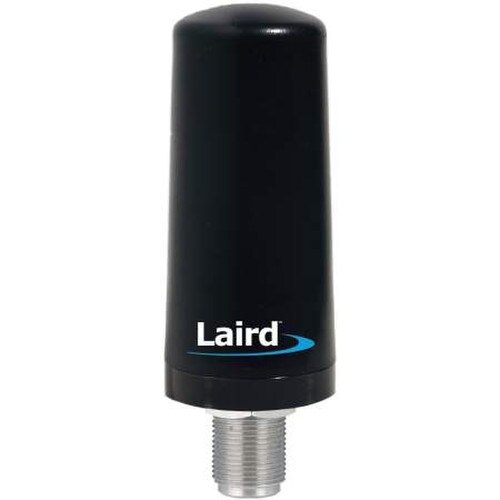

Laird 4G/3G Multiband No Ground Plane Phantom Antenna Black (TRA6927M3PBN-001)
- Brand: Laird Connectivity
- P\N: TRA6927M3PBN-001
- UPC: 729198240011
Live Chat
Contact Us
Description
Laird 4G/3G Multiband No Ground Plane Phantom Antenna Black (TRA6927M3PBN-001)
The Laird TRA6927M3PBN-001 Phantom antenna operates simultaneously in the 698 – 960 MHz and 1710 – 2700 MHz bands, ideal for 4G/3G applications where no ground plane or metal surface is available. A mechanically robust design suitable for both indoor and outdoor applications with wide bandwidth and a low angle radiation pattern. The antenna features a threaded permanent stud mount.
Specifications
| Maximum Power (W) | 100 |
| Gain dBi (dBi) | 0 dBi, 1.7 dBi, 2.9 dBi |
| Specific Frequency | 698-960 MHz, 1710-1990 MHz, 2100-2700 MHz |
| Color | Black |
| Mobile Antenna Mounting Type | Permanent |
| Antenna Material | Plastic |
| GPS Included | No |
| Frequency Band | Dual/Multi Band |
