Laird 9dB 6 Element Yagi Antenna (Y8966)

  • Brand: Laird Connectivity
  • P\N: Y8966
  • UPC: 729198946746
(0)No Reviews yet

Availability: Backorder


Your Price: $328.00

Do you have questions?

Please contact our experts for assistance.

Description

Laird 9dB 6 Element Yagi Antenna (Y8966)

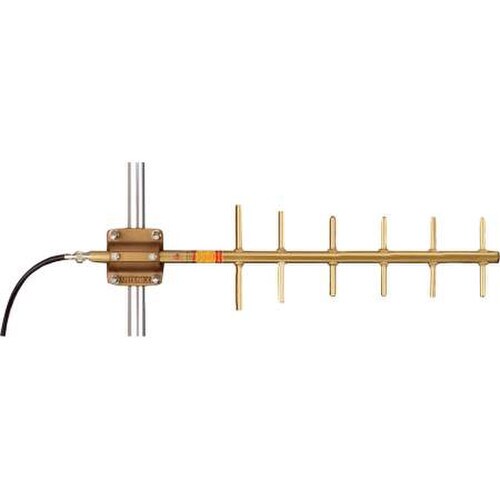

LAIRD's Y8966 Yagi antenna is gold-anodized and fully welded to create a greater gain because of its ability to focus a signal in one direction. This Yagi antenna operates in the 896 – 970 MHz frequency range. The Y8966 Yagi is a six-element antenna with 9 dB gain with a maximum power input of 300 W. The Yagi is terminated with an N Female connector and includes the stainless steel U-bolts for up to 1 5/8 in mounting hardware.

The internal matching design of this Yagi directional antenna will not ice up, detune, or corrode.

Specifications

Item Weight3 lbs.
Gain dBi (dBi)11.15 dBi
Gain dBd9 dBd
Item Length27.6875 in
Horizontal Beamwidth42 deg
Jumper IncludedNo
Maximum Power (W)300
PolarizationLinear
RF ConnectorsN Female
Vertical Beamwidth (Deg)40
Specific Frequency896-970 MHz
Maximum Rated Wind Velocity125 miles/hour
Maximum VSWR1.5:1
Minimum Front Back Ratio16 dB
Connector PlacementCenter
Lightning ProtectionDC Ground
Frequency Band900 MHz
