Laird Connectivity 162-168MHz 3dB Fiberglass (FG1623)

  • Brand: Laird Connectivity
  • P\N: FG1623
  • UPC: 729198273897
(0)No Reviews yet

Availability: Backorder


Your Price: $386.00

Do you have questions?

Please contact our experts for assistance.

Description

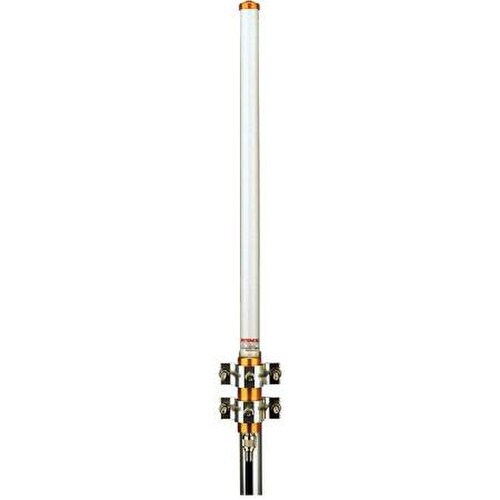

Laird Connectivity 162-168MHz 3dB Fiberglass (FG1623)

FIBERGLASS BASE STATION ANTENNAS FEATURE INDUSTRY LEADING DESIGN COMPONENTS THAT PERFORM IN EXTREME CONDITIONS
The Laird FG1623 omnidirectional base station antenna incorporates a collinear design that is enclosed in high
density fiberglass, which is covered with a protective ultraviolet inhibiting coating. The radiating elements are
carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a “cold” sleeve that allows for greater freedom in mounting. The antenna’s high quality and well-focused beam provides the best efficiency with highest gain.

Specifications

Item Weight4 lbs.
Item Length107 inch
RF ConnectorsN Female
Specific Frequency162-168 MHz
Vertical Beamwidth (Deg)33
Maximum VSWR2.0:1
Maximum Rated Wind Velocity100
Tuned Frequency (MHz)162-168
Lightning ProtectionDC Ground
Flat Plate Area (Sq. Ft)N/A
Lateral Thrust @ RWV (lb)N/A
Support Pipe Dia.N/A
Support Pipe LengthN/A
Frequency BandVHF
