Laird Technologies 698-960/1710-2700 MHz Direct Mount Omni Antenna (OC69271-FNF)
- Brand: Laird Connectivity
- P\N: OC69271-FNF
- UPC: 729198793937
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

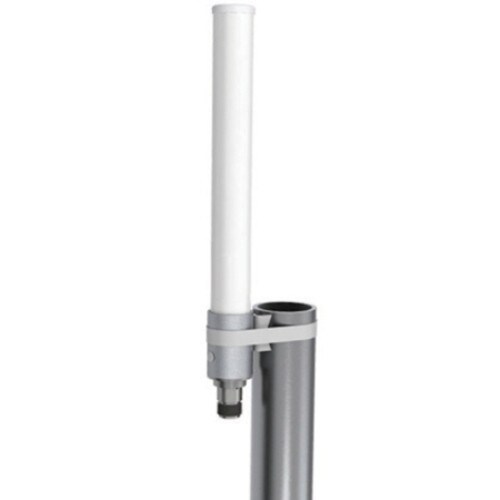

Laird Technologies 698-960/1710-2700 MHz Direct Mount Omni Antenna (OC69271-FNF)
The Laird OC69271-FNF antenna is a multi-band omnidirectional antenna with N Female connector that covers the domestic LTE700 / Cellular / PCS / AWS / MDS, WiMAX 2300/2500, and global GSM900 / GSM1800 / UMTS / LTE2600 bands. The antenna can be used in both indoor and outdoor applications. It comes complete with mast mounting hardware and includes an ultraviolet (UV) stable radome enclosure.
Specifications
| Gain dBd | 1.35 dBd |
| Gain dBi (dBi) | 1.5 dBi, 3.5 dBi |
| Jumper Included | No |
| RF Connectors | N Female |
| Polarization | Linear, Vertical |
| Specific Frequency | 698-960 MHz, 1710-1990 MHz, 1920-2170 MHz, 2100-2500 MHz, 2500-2690 MHz |
| Maximum VSWR | 2.5:1, 2.0:1 |
| Connector Placement | Bottom |
| Lightning Protection | Sold Seperately |
| Frequency Band | LTE Multi-Band |
