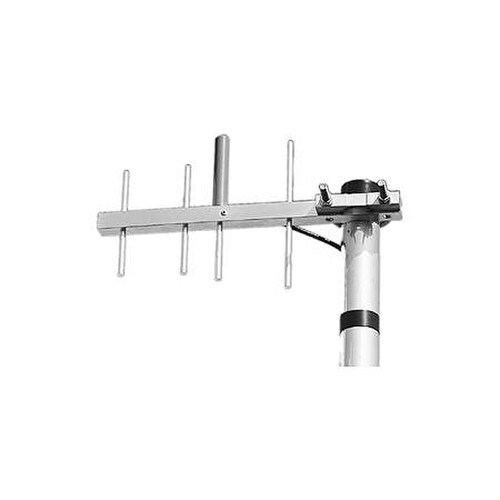

Laird Technologies 806-902 MHz 6dB 4 Element Yagi Antenna (PC804N)

Laird Technologies 806-902 MHz 6dB 4 Element Yagi Antenna (PC804N)

Key Features and Benefits

Experience superior connectivity with the Laird Technologies 806-902 MHz 6dB 4 Element Yagi Antenna. Designed for 800 MHz, ESMR, SMR, cellular, or conventional applications, this antenna ensures reliable and consistent performance.

• 4-element yagi antenna with 6 dBd gain
• Operates in the 806 - 902 MHz frequency range
• Maximum power input of 200 watts
• Includes a 19-inch pigtail terminated with an N female connector
• 8.15 dBi Gain, Linear Polarization
• 70 degrees Vertical Beamwidth, 90 degrees Horizontal Beamwidth
• 1.5:1 Maximum VSWR, DC Ground Lightning Protection
• Maximum Rated Wind Velocity: 125 mile/h

Technical Specifications

The Laird PC804N yagi antenna is not only powerful but also compact and lightweight. Weighing just 1.41 lbs and measuring 13 inches in length, it is easy to install and does not require a large space. The antenna comes with a 19" N Female pigtail jumper and U-bolts; the maximum mast diameter is 2 1/8 inches. These are supplied for mounting, making the installation process a breeze.

Reliable and Durable

With a maximum rated wind velocity of 125 miles per hour, this antenna is built to withstand harsh weather conditions. The DC Ground Lightning Protection feature further enhances its durability, ensuring your connectivity is not interrupted during storms.

Enhanced Connectivity

With a 6 dBd gain and an operating frequency range of 806 - 902 MHz, the Laird PC804N yagi antenna ensures strong and stable signals. Whether for ESMR, SMR, cellular, or conventional applications, this antenna delivers exceptional performance.

Don't compromise on your connectivity. Experience the difference with the Laird PC804N yagi antenna. Order now and enjoy superior performance and reliability.
