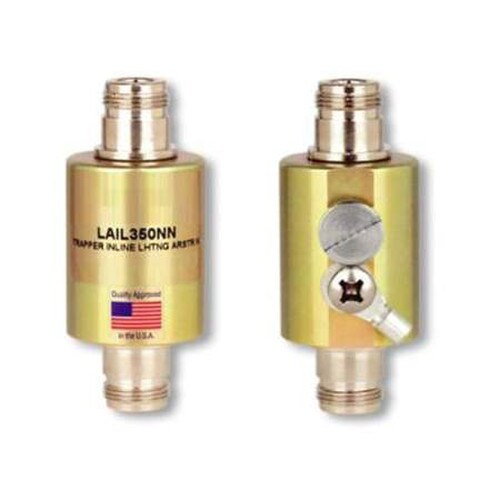

Laird Technologies In Line Lightning Protection (LAIL350NN)

Laird Technologies In Line Lightning Protection (LAIL350NN)

Key Features and Benefits

Experience the ultimate protection for your equipment with the Laird Technologies In Line Lightning Protection. This high-performance device is designed to safeguard your transmit/receive point to point links and broadcast applications from lightning and NEMP at microwave frequencies.

• Mount Type: In Line - for easy installation and optimal performance.
• Frequency Range: 0-1000 MHz - ensuring wide-ranging compatibility.
• Maximum Power: 1000 W - for handling high power applications.
• Nominal Insertion Loss: 0.25 dB - minimal loss for maximum efficiency.
• RF Power: 1000W - providing robust protection for your equipment.
• Protected Side Connector: N Female - for secure and reliable connections.
• Surge Side Connector: N Female - ensuring optimal surge protection.

Technical Specifications

The Laird Lightning Protection is not just about features, it's about technical excellence. It is designed to handle a surge current of 20kA and activates 2.5 ns after reaching the DC threshold of 600Vdc. This device is also equipped with multi-strike capability, ensuring your equipment stays protected even after multiple lightning strikes. The aluminum enclosure and stainless steel hardware provide durability and longevity. Plus, it's RoHS compliant, ensuring it meets the highest environmental standards.

Additional Information

The Laird Lightning Protection mounts through a bulkhead panel of a maximum 1/4" thickness. Its DC blocking feature ensures compatibility with your equipment. Weighing just 0.35 lbs, it is lightweight yet sturdy, making it a reliable choice for your protection needs.

Don't let lightning or NEMP disrupt your operations. Protect your equipment with the Laird Lightning Protection. Its superior features and technical excellence make it a must-have for any professional setup. Invest in Laird Lightning Protection today and experience uninterrupted performance, every time.
