Laird Y4506 10.2dB 6 Element Yagi Antenna (Y4506)
- Brand: Laird Connectivity
- P\N: Y4506
- UPC: 729198371456
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

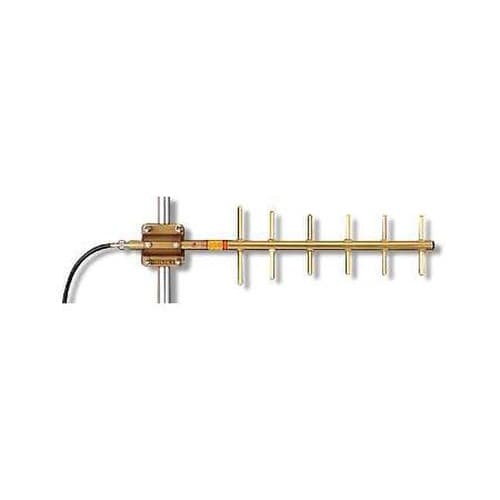

Laird Y4506 10.2dB 6 Element Yagi Antenna
LAIRD's Y4506 450 – 470 MHz six-element directional antenna. 10.2 dB gain 300 W. Direct N Female termination. Mounting hardware included. Gold anodized for long life.
Specifications
| Item Weight | 3 lbs. |
| Gain dBi (dBi) | 12.3 dBi |
| Gain dBd | 10.2 dBd |
| Item Length | 44 inch |
| Horizontal Beamwidth | 72 deg |
| Jumper Included | No |
| Maximum Power (W) | 300 |
| Polarization | Linear |
| RF Connectors | N Female |
| Vertical Beamwidth (Deg) | 57 |
| Specific Frequency | 450-470 MHz |
| Maximum Rated Wind Velocity | 100 mile/h |
| Maximum VSWR | 1.5:1 |
| Minimum Front Back Ratio | 20 dB |
| Lightning Protection | DC Ground |
| Frequency Band | UHF |
