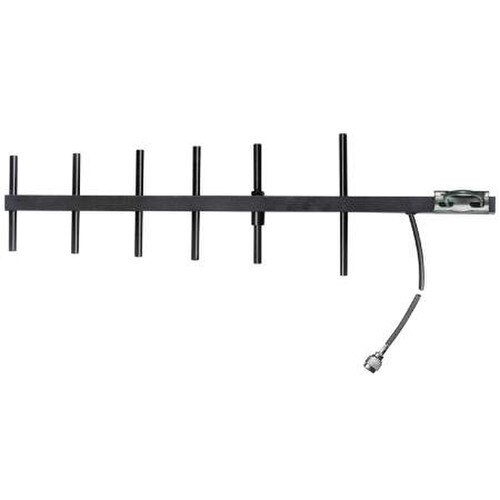

Laird Y8066 9dB 6 Element Yagi Antenna (Y8066)
- Brand: Laird Connectivity
- P\N: Y8066
- UPC: 729198795184
Live Chat
Contact Us
Description
Laird Y8066 9dB 6 Element Yagi Antenna (Y8066)
LAIRD's Y8066 gold-anodized fully welded 800 / 900 MHz model is great for cleaning up noisy 800 MHz signals. This Yagi antenna operates in the 806 – 896 MHz frequency range. The Y8066 is a six-element antenna providing 9 dBd gain with a maximum power input of 300 W. The Yagi antenna is terminated with an N Female connector and includes the stainless steel mounting hardware.
Because of its ability to focus its signal in one direction, a greater gain is created. The internal matching design of this Yagi directional antenna will not ice up, detune, or corrode. LAIRD's 806 – 896 MHz aluminum finished Yagi antenna can be custom VHF tuned.
Specifications
| Item Weight | 2 lbs. |
| Gain dBi (dBi) | 11.15 dBi |
| Gain dBd | 9 dBd |
| Item Length | 27.6875 in |
| Horizontal Beamwidth | 42 deg |
| Jumper Included | No |
| Maximum Power (W) | 300 |
| Polarization | Linear |
| RF Connectors | N Female |
| Vertical Beamwidth (Deg) | 40 |
| Specific Frequency | 806-896 MHz |
| Maximum Rated Wind Velocity | 125 miles/hour |
| Maximum VSWR | 1.5:1 |
| Minimum Front Back Ratio | 16 dB |
| Connector Placement | Center |
| Lightning Protection | DC Ground |
| Frequency Band | SMR |
