Microlab/FXR 10W Low-PIM Attenuator 610dB FY-Series (FY-10E)
- Brand: Microlab FXR
- P\N: FY-10E
- UPC: 729198705985
Do you have questions?
Please contact our experts for assistance.
Description
Description

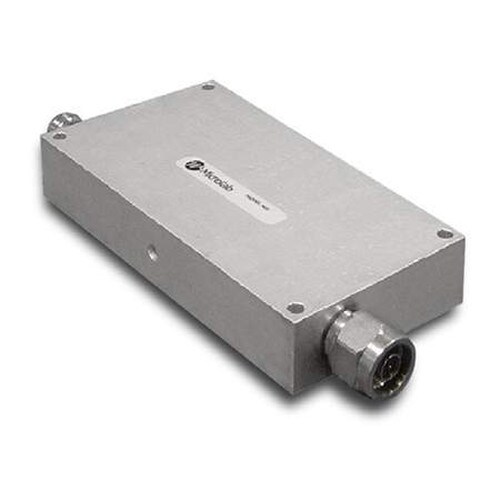

Microlab FY-10E FY-Series Low PIM 10W, 10 dB (10.5 dB nominal) Attenuator with 4.3-10 connectors. RoHS Compliant. Microlab FY Series is a low PIM, unidirectional Attenuator, using a multi-section, quarter wave, stripline coupler with a low PIM cable load.
It is designed for indoor applications covering all wireless bands from 698 to 2,700 MHz. This model couples off a portion of the input power to the output. This achieves a flat attenuation response over a wide frequency range.
The wide frequency range allows use of multiband antennas and leaky cable systems and in wireless base stations. With minimal solder joints and an air dielectric, the dissipative loss has been minimized and reliability enhanced.
Special Order. Non-Cancellable and Non-Returnable
It is designed for indoor applications covering all wireless bands from 698 to 2,700 MHz. This model couples off a portion of the input power to the output. This achieves a flat attenuation response over a wide frequency range.
The wide frequency range allows use of multiband antennas and leaky cable systems and in wireless base stations. With minimal solder joints and an air dielectric, the dissipative loss has been minimized and reliability enhanced.
Special Order. Non-Cancellable and Non-Returnable
