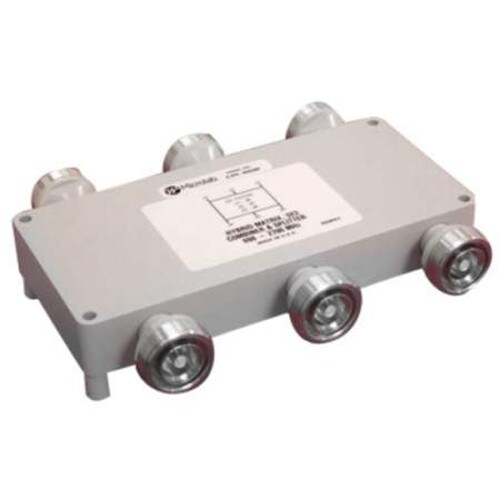

Microlab FXR 3 x 3 Hybrid Coupler (CM-80N)

The CM-80N 3:3 Hybrid Combiner is a network which combines up to three inputs. In DAS applications, all three outputs may be used to feed different cables, essentially providing lossless combining. Any unused ports must be terminated in 50W at the appropriate power rating. This network is an important building block in combining boxes used in neutral host in-building DAS.

Special Order. Non-Cancellable and Non-Returnable

Key Features

• Frequency Range 694-2700 MHz
• Nominal Coupling 25 dB
• PIM Typical -161 dBc
• Coupled Loss (dB) 5.0
• Maximum Power 150 W
• Directivity 25 dB
• RF Connectors N-Female
• Maximum VSWR 1.25:1
• Dimensions 3.20" L x 6.45" W x 1.48" H
