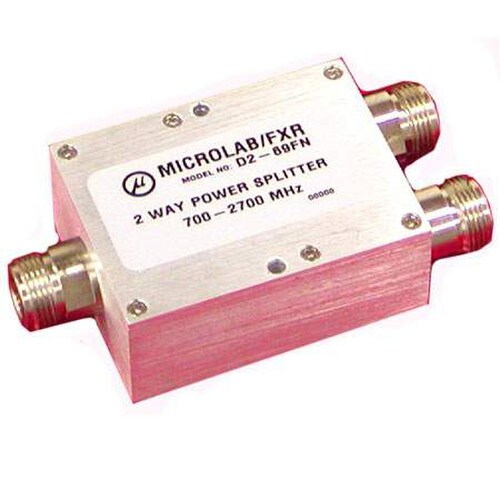

Microlab FXR 694-2700 MHz 2-Way Wilkinson Splitter (D2-69FF)

Microlab Model Dx-69 series of Wilkinson style Power Dividers has been designed for low power applications where output isolation is preferable over lowest possible loss. The wide frequency range of this design allows use with multiband antennas and leaky cable systems.
Key Features

• Frequency Range 694-2700 MHz
• Minimum Isolation 20 dB
• Maximum Power 10 W
• Loss 3.4 dB
• RF Connectors SMA Female
• Maximum VSWR 1.25:1
