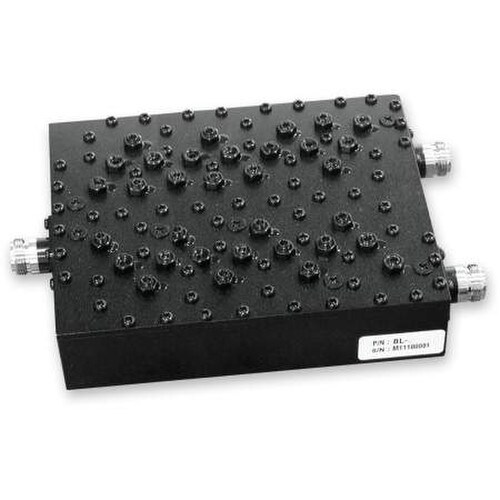

Microlab/FXR Tx:1930-1995 Rx:1850-1915 MHz Duplexer (BL-19N)

Microlab/FXR Tx:1930-1995 Rx:1850-1915 MHz Duplexer (BL-19N)

Key Features and Benefits

Experience the power of seamless communication with the Microlab/FXR Duplexer. This high-performance device is designed to facilitate simultaneous transmission and reception of signals, making it an essential tool for professionals who value efficiency and reliability.

• Frequency Range: 1850-1915 MHz / 1930-1995 MHz, ensuring broad coverage and compatibility
• Maximum Power Input: 60 W, providing robust performance
• Maximum VSWR: 1.29:1, guaranteeing optimal signal strength
• Insertion Loss (Tx/Ant-dB): 1.2, ensuring minimal signal loss
• Insertion Loss (Rx/Ant-dB): 1.2, maintaining strong signal reception
• Minimum Isolation: 65 dB, offering superior signal separation
• RF Connectors: N Female, ensuring secure and reliable connections
• Operating Temperature Range: -30-70 deg C, providing reliable performance in diverse conditions
• Finish: Black Epoxy Painted Aluminum, offering durability and aesthetic appeal

Technical Specifications

The Microlab/FXR Duplexer is a lightweight device, weighing just 4 lbs. It is designed to withstand a wide range of operating temperatures, from -30 to 70 degrees Celsius. The black epoxy painted aluminum finish not only adds to its aesthetic appeal but also enhances its durability.

With a maximum power input of 60 W and a maximum VSWR of 1.29:1, this device guarantees optimal signal strength. The insertion loss (Tx/Ant-dB and Rx/Ant-dB) is less than 1.2, ensuring minimal signal loss. The minimum isolation of 65 dB offers superior signal separation, making this device a reliable choice for professionals.

Experience Seamless Communication

With the Microlab/FXR Duplexer, you can experience seamless communication like never before. Its broad frequency range ensures compatibility with a wide range of devices, while the N Female RF connectors provide secure and reliable connections. Whether you're in a high-pressure professional setting or simply need reliable communication, this device is the perfect choice.

Don't compromise on your communication needs. Experience the power and reliability of the Microlab/FXR Duplexer today. Order now and elevate your communication experience!
