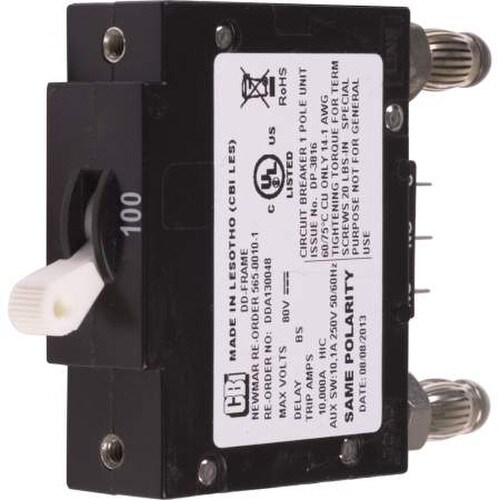

NewMar 100A Plug-In Breaker DST-20 (PBA-100)

This NewMar 100 amp circuit breaker with open circuit alarm is a distribution panel to control and protect DC system components. Accommodates PFM-200 or DST-20A plug-in type circuit breakers (not included) which are installed from the front for easy system expansion. Auxiliary contacts on each breaker activate summary alarm contacts providing remote indication of tripped breaker. A special "mid-trip" function distinguishes between an over-current tripped breaker and one that is intentionally shut off.

Key Features

• Allows the operator to turn off individual loads without setting off the alarm
• Wiring is made at easy access, rear panel terminals
• 400 amp bus(es) enable simultaneous use of the panel for two different voltages
