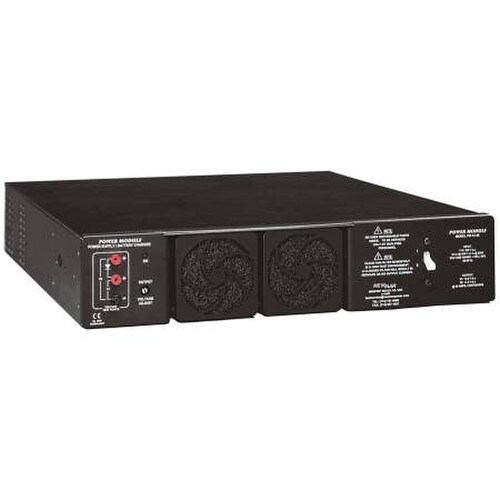

NewMar Power Module 24V Out, 120/230V In, 35A (PM-24-40)
- Brand: Newmar
- P\N: PM-24-40
- UPC: 888063032127
Do you have questions?
Please contact our experts for assistance.
Description
Description
This power module is used in various marine applications. It functions as a power supply or battery charger. This power module utilizes 24V out and 120/320 v in, and operates at 35 Amps. Use this device with 19? or 23? rackmounts. Solid Signal is your best source for this power module from NewMar.
Key Features:
Tech Specs:
Key Features:
- Marine power supply/battery charger
- 27.2VDC output
- 85-135/ 170-270 VAC at 47-63 Hz input
- 35 amps continuous
- 19" or 23" rack mount
Tech Specs:
- Item Height: 3.5”
- DC Output Voltage: 27.2 V
- Qty/ Uom: 1 each
- Nominal DC Output Voltage: 27.2 V
- Ripple Voltage: 1%
- Voltage/Amperage Meter: None
- Crowbar Protection: Yes
- Maximum Intermittent Amperage: 40 A
- Rack Size: 19/23”
- Item Width: 17”
- Maximum Continuous Amperage: 35 A
- Fold-Back Protection: Yes
- Power Cord Included: No
- AC Input Voltage: 115 V, 230 V
