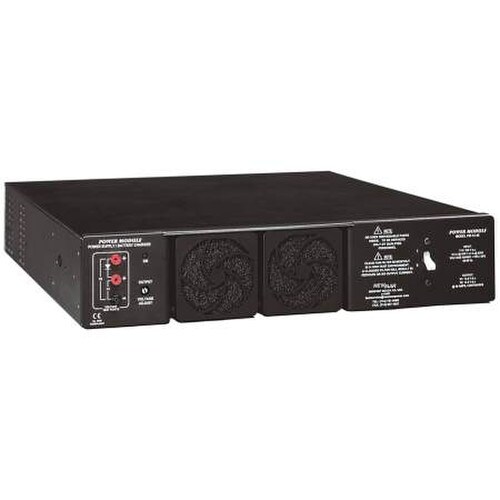

NewMar Power Module 54.4V/20A (PM-48-20)

NewMar Power Module 54.4V/20A: Powering Your Professional Needs

Key Features and Benefits

• 54.4 VDC output for reliable power supply
• 90-265 VAC at 47-63 Hz input, offering versatility in power sources
• 20 amps continuous for consistent performance
• Scalable system from 500 to 6,000 watts per rack, allowing for customization based on your needs
• Functions as either a power supply or three-stage battery charger, providing flexibility in usage
• Can be used for positive, negative, or floating grounds
• Units can be paralleled for N+1 redundancy, ensuring backup power
• Alarm contacts for local or remote monitoring, keeping you informed of the system status
• Can be integrated with the PFM-200 Power Function Manager for advanced functions like digital meter output monitoring, multiple load distribution, remote shutdown, and low voltage disconnect

Technical Specifications

• Brand: Newmar
• Product Name: NewMar Power Module
• Model: PM-48-20
• Output: 54.4 VDC
• Input: 90-265 VAC at 47-63 Hz
• Amperage: 20 amps continuous
• Mounting: 19" or 23" Rack Mount

Experience the Power of NewMar

The NewMar Power Module is designed to meet the demanding needs of professionals. With its 54.4 VDC output and 20 amps continuous, it provides a reliable and consistent power supply. Its versatility is evident in its 90-265 VAC at 47-63 Hz input and its ability to function as either a power supply or a three-stage battery charger.

What sets the NewMar Power Module apart is its scalability. It can be employed singly or in combination, allowing you to scale the system from 500 to 6,000 watts per rack. This means you can customize the system based on your specific needs. Plus, units can be paralleled for N+1 redundancy, providing you with a backup power source.

With the NewMar Power Module, you're always in control. Its alarm contacts allow for local or remote monitoring, so you're always informed of the system status. And when integrated with the PFM-200 Power Function Manager, you gain access to advanced functions like digital meter output monitoring, multiple load distribution, remote shutdown, and low voltage disconnect.

Experience the power, versatility, and control of the NewMar Power Module. Order yours today and power your professional needs with confidence.
