PCTEL 144-174MHz Unity Gain Base Station Omni Antenna (MBS150)
- Brand: PCTEL
- P\N: MBS150
- UPC: 729198749156
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

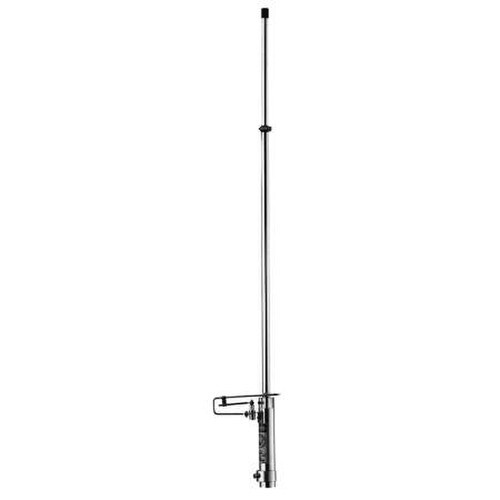

PCTEL 144-174MHz Unity Gain Base Station Omni Antenna (MBS150)
PCTEL's MYA1503KN 144 – 174 MHz omnidirectional base station antenna unity gain, 250 W, direct UHF Female termination includes mounting hardware.
Specifications
| Item Weight | 1.1 lbs. |
| Gain dBd | 0 dBd |
| Gain dBi (dBi) | 2.15 dBi |
| Jumper Included | No |
| RF Connectors | UHF Female |
| Polarization | Vertical |
| Specific Frequency | 144-174 MHz |
| Vertical Beamwidth (Deg) | 70 |
| Maximum VSWR | 1.5:1 |
| Maximum Rated Wind Velocity | 90 mile/hour |
| Tuned Frequency (MHz) | N/A |
| Lightning Protection | DC Ground |
| Flat Plate Area (Sq. Ft) | 0.17 |
| Lateral Thrust @ RWV (lb) | 6.7 |
| Support Pipe Dia. | 1-1/4" |
| Support Pipe Length | Not Specified |
| Frequency Band | VHF |
