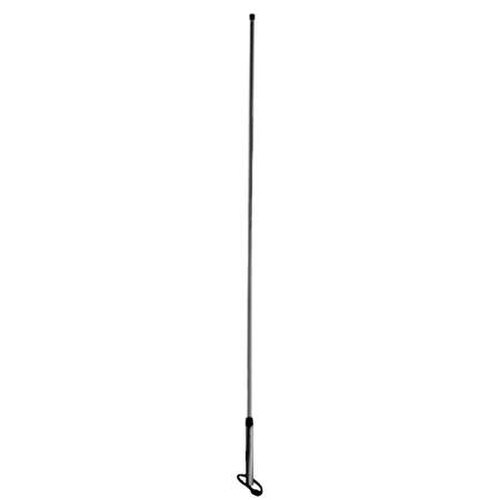

PCTEL 150-156MHz 3dB Fiberglass Omni Antenna (MFB1503)
- Brand: PCTEL
- P\N: MFB1503
- UPC: 729198945732
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
PCTEL 150-156MHz 3dB Fiberglass Omni Antenna (MFB1503)
PCTEL's 150 - 156 MHz 3 dB fiberglass base station omni antenna with N Male connector and 16-inch jumper. This antenna consists of base-matched 1/2 wave antennas encapsulated in a heavy-duty fiberglass radome with a thick-walled aluminum mounting base for reliable long-term use. Factory tuned frequency: 150 MHz
Features:
- Effective “J” pole design requires no radials or ground plane
- • White UV-resistant pultruded fiberglass radome
- DC grounded
Order mounting clamps separately.
Dimensions: 1-5/16 inch OD X 117 inch
Specifications
| Item Weight | 4 lb |
| Item Height | 129 in |
| Gain dBd | 3 dBd |
| Gain dBi (dBi) | 5.15 dBi |
| Jumper Included | Yes |
| RF Connectors | N Male |
| Polarization | Vertical |
| Specific Frequency | 150-156 MHz |
| Vertical Beamwidth (Deg) | 29 |
| Maximum VSWR | 1.5:1 |
| Maximum Rated Wind Velocity | 100 mile/h |
| Tuned Frequency (MHz) | 150-156 |
| Lightning Protection | DC Ground |
| Flat Plate Area (Sq. Ft) | Not Specified |
| Lateral Thrust @ RWV (lb) | 15.8 |
| Support Pipe Dia. | 1 5/16" |
| Support Pipe Length | Not Specified |
| Frequency Band | VHF |
