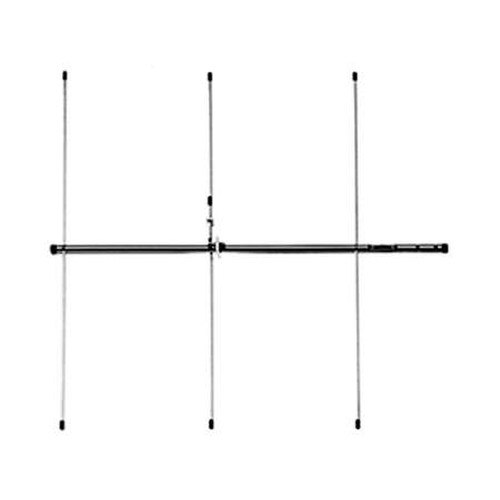

PCTEL 150-174MHz 7.1dB 3 Element Yagi Antenna (MYA1503KN)
- Brand: PCTEL
- P\N: MYA1503KN
- UPC: 729198484774
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
PCTEL 150-174MHz 7.1dB 3 Element Yagi Antenna (MYA1503KN)
PCTEL's 150 - 174 MHz 9.2 dBi 3 element Yagi antenna with N Female connector. This 250 W, 50 Ohm Yagi antenna features rugged 6061-T6 seamless aluminum construction, stainless steel hardware, and through boom mounting of all elements for years of reliable service. Elements are DC grounded to the boom.
Key Features:
- Stainless steel hardware
- Stacking harness available for phasing two or more antennas
- Heavy-duty, double-walled aluminum boom
- DC grounded
- MYK1 mount
- Wind Load Rating 100 mph
- Factory Tuned Frequency: 150 MHz
- Boom Dimensions: Length: 42 inch, Diameter: 7/8 inch
Specifications
| Item Weight | 3 lbs. |
| Gain dBi (dBi) | 9.2 dBi |
| Gain dBd | 7.1 dBd |
| Item Length | 42 in |
| Horizontal Beamwidth | 72 deg |
| Jumper Included | No |
| Maximum Power (W) | 250 |
| Polarization | Linear |
| RF Connectors | N Female |
| Vertical Beamwidth (Deg) | 57 |
| Specific Frequency | 150-174 MHz |
| Maximum Rated Wind Velocity | 100 miles/hour |
| Maximum VSWR | 1.5:1 |
| Minimum Front Back Ratio | 17 dB |
| Lightning Protection | DC Ground |
| Frequency Band | VHF |
