PCTEL 698-960 and 1710-2700 MHz 4G LTE MIMO Panel Antenna (PLTE7027M)
- Brand: PCTEL
- P\N: PLTE7027M
- UPC: 729198989262
Description
Description

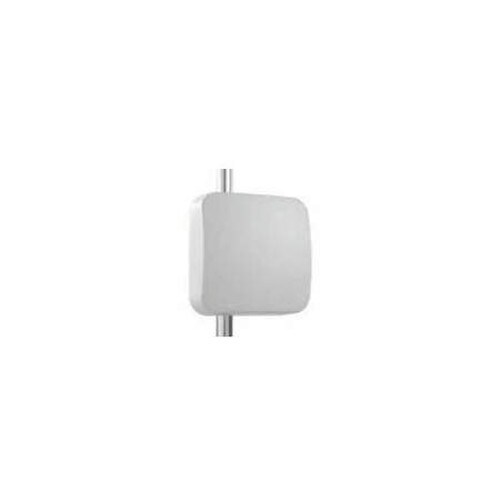

PCTEL 4G LTE MIMO Panel Antenna (PLTE7027M)
Key Features and Benefits
Experience superior connectivity with the PCTEL 4G LTE MIMO Panel Antenna. This high-gain, directional panel antenna is designed to enhance your 4G LTE network coverage, ensuring seamless communication and data transfer. Its rugged housing design ensures durability and longevity.
- Specific Frequency: 698-960 MHz / 1710-2700 MHz
- Gain: 8.2 dBi / 8.0 dBi
- Minimum Front Back Ratio: 20 dB
- Polarization: Vertical / Horizontal / +/- 45 Degrees
- Horizontal Beamwidth: 55 deg / 65 deg
- Maximum VSWR: 2.0:1
- Maximum Power: 50 W
- Electrical Downtilt: Fixed
- RF Connectors: N Female
- Connector Placement: Back
- Maximum Rated Wind Velocity: 125 mile/h
Technical Specifications
The PCTEL 4G LTE MIMO Panel Antenna is designed with precision and attention to detail. It measures 4.4 inches in height, 12.0 inches in length, and 12.0 inches in width. Please note that the jumper is not included with the antenna.
Installation
The antenna includes a heavy-duty mounting bracket, suitable for both mast or wall mount installations. This ensures a secure and stable setup for optimal performance.
Experience the difference in your 4G LTE network coverage with the PCTEL 4G LTE MIMO Panel Antenna. Its high gain and specific frequency range ensure a strong and stable connection, enhancing your communication and data transfer capabilities. The rugged housing design guarantees durability, making it a reliable choice for your networking needs.
Don't compromise on your connectivity. Upgrade to the PCTEL 4G LTE MIMO Panel Antenna today and experience the difference in network coverage and data transfer speed. Order now!
