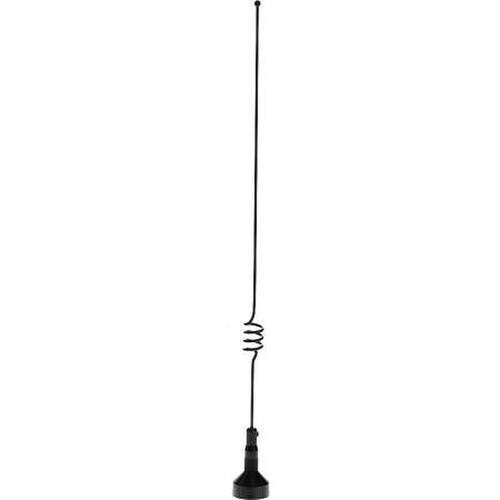

PCTEL 806-896 3dB Open Coil Antenna Black (BMAX8053)

PCTEL 806-896 3dB Open Coil Antenna Black (BMAX8053)

With their rugged molded polymer base, plated springloaded contact pin and .100 inch diameter stainless steel whip, these antennas are designed to deliver long-lasting, trouble-free operation. Select models are available with open or closed coil rod, and can be ordered in all black finish.

Key Features

• Rugged – Molded polymer base provides durability in harsh mobile environments
• High performance – WiFi and WiMAX models provide coverage of 2.2 GHz to 2.9 GHz frequencies without tuning; WiMAX model covers 2.3-3.8 GHz frequencies
• Selection – 3 dB or 5 dB models available
• Easy installation – Comes ready to install; no rod cutting is required (unless otherwise noted)
• Adaptable – Designed to mate with all 1-1/8 inch-18 thread mounts, including 3/4 inch mounts
• Secure – Spring-loaded gold plated contact pin

Applications:

• WiFi and Cellular Mobile applications
• VHF and UHF land mobile radio
• Public Safety
• Digital radio
• AMPS/PCS voice/data support
