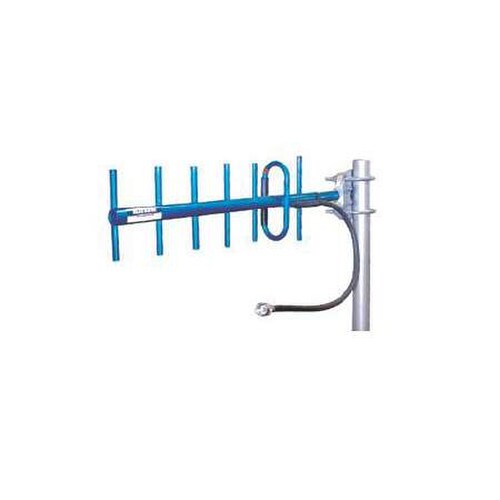

PCTEL 890-960 MHz 10dBd 7 Element Yagi Antenna (BMYD890K)

  • Brand: PCTEL
  • P\N: BMYD890K
  • UPC: 888063534140
(0)No Reviews yet

Availability: In Stock


Your Price: $549.00

Do you have questions?

Please contact our experts for assistance.

Description

PCTEL 890-960 MHz 10dBd 7 Element Yagi Antenna (BMYD890K)

PCTEL's Bluewave 890 - 960 MHz 10 dBd 200 W 7 element Yagi antenna. This Yagi antenna is supplied with a 2-foot RG213 cable and N Female connector. It is engineered to meet the requirements of a high gain, broadband, premium quality antenna. Manufactured using high strength 6061-T6 aluminum to withstand heavy ice, high wind, and other harsh conditions. All elements are welded to the boom and the dipole design has an integral feed line welded to the boom for extra strength and electrical conductivity. This eliminates misalignment or fastener problems. The entire antenna is anodized for aesthetic appearance and corrosion resistance. A heavy-duty clamp is supplied which easily permits horizontal or vertical polarization.

  • Dimensions: 23.9 x 6.75 inch
  • BWC1001 clamp bracket for 1/2 - 7/8 inch diameter Yagis. Mounts to masts 1.25 - 2.4 inch OD (Included)

Features:

  • Elements and boom are manufactured from aircraft quality 6061-T6 aluminum for optimum strength
  • Antenna is anodized for aesthetic appearance and corrosion resistance
  • Temperature range -40 deg. C to +85 deg. C
  • Wind survival rating ≥ 200 mph

Features

  • Optimum strength — Elements and boom are made from aircraft quality 6061-T6 aluminum
  • Durable — Antenna is anodized for corrosion resistance and aesthetic appearance
  • Ease of connection — Supplied with a 2’ pigtail (RG213) and N Female connector
  • Withstands extreme weather conditions — Temperature range -40°C to +85°C; wind survival rating ≥ 200 mph

Specifications

Item Height6.75 in
Item Weight6.8 lb
Gain dBi (dBi)12.1 dBi
Gain dBd10 dBd
Item Length23.9 in
Horizontal Beamwidth56 deg
Jumper IncludedYes
Maximum Power (W)200
PolarizationLinear
RF ConnectorsN Female
Vertical Beamwidth (Deg)46
Specific Frequency890-960 MHz
Maximum Rated Wind Velocity125 mile/h
Maximum VSWR1.7:1
Minimum Front Back Ratio20 dB
Connector PlacementPigtail
Frequency Band900 MHz
