PCTEL 890-960MHz 12dBd 11 Element Yagi Antenna (BMYD890M)

PCTEL 890-960MHz 12dBd 11 Element Yagi Antenna (BMYD890M)

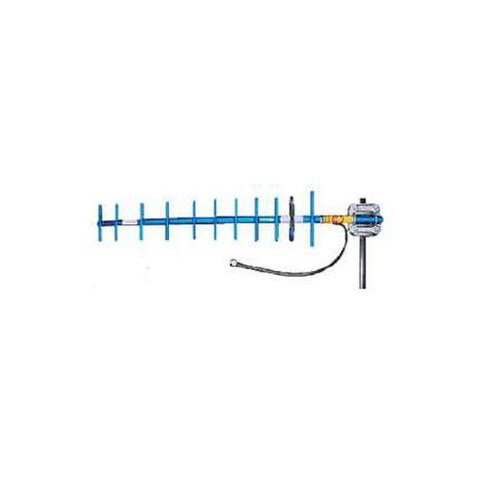

PCTEL's Bluewave 890 - 960 MHz 12 dBd 200 W 11 element Yagi antenna. This Yagi antenna is supplied with a 2-foot RG213 cable and N Female connector. It is engineered to meet the requirements of a high gain, broadband, premium quality antenna. Manufactured using high strength 6061-T6 aluminum to withstand heavy ice, high wind, and other harsh conditions. All elements are welded to the boom and the dipole design has an integral feed line welded to the boom for extra strength and electrical conductivity. This eliminates misalignment or fastener problems. The entire antenna is anodized for aesthetic appearance and corrosion resistance. A heavy-duty clamp is supplied which easily permits horizontal or vertical polarization.

• Dimensions: 36 x 6.75 inch
• BWC1001 clamp bracket for 1/2 - 7/8 inch diameter Yagis. Mounts to masts 1.25 - 2.4 inch OD (Included)

Features:

• Elements and boom are manufactured from aircraft quality 6061-T6 aluminum for optimum strength
• Antenna is anodized for aesthetic appearance and corrosion resistance
• Temperature range -40 deg. C to +85 deg. C
• Wind survival rating ≥ 200 mph

• Optimum strength — Elements and boom are made from aircraft quality 6061-T6 aluminum
• Durable — Antenna is anodized for corrosion resistance and aesthetic appearance
• Ease of connection — Supplied with a 2’ pigtail (RG213) and N Female connector
• Withstands extreme weather conditions — Temperature range -40°C to +85°C; wind survival rating ≥ 200 mph
