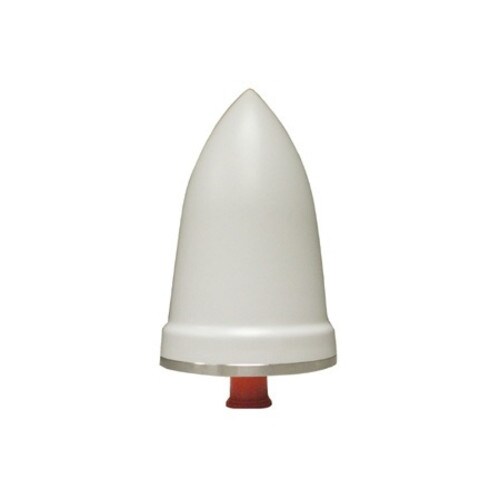

PCTEL GPS Timing Antenna with Lightning Protection (GPSGL-TMG-SPI-40NCB)

PCTEL GPS Timing Antenna with Lightning Protection (GPSGL-TMG-SPI-40NCB)

PCTEL's GPSGL-TMG-SPI-40NCB timing reference antennas are specifically designed for long-lasting, trouble-free deployments in congested cell-site applications. The low noise, high gain amplifier is well suited to address attenuation issues associated with applications requiring longer cable runs.

The proprietary quadrifiliar helix design, coupled with multistage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas. This multiband antenna covers GPS L1, GALILEO L1 as well as GLONASS E1 frequencies.

Key Features:

• Powerful attenuation mitigation – Via low noise, high gain amplifier
• Superior filtering – Quadrifiliar helix design with multi-stage filtering provides effective out-of-band rejection and lower elevation pattern performance
• Multiband coverage – spans GPS L1, GALILEO L1 and GLONASS E1
• Protection from the elements – Unique radome shape prevents water, ice and bird perching issues
• Ends need for downstream, in-line surge suppressors – through Integrated, on-board lightning protection
