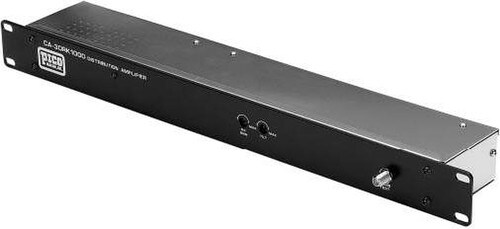

Pico Digital 1 GHz Broadband Push-Pull Headend Amp 30dB Gain (CA-30RK1000)
- Brand: Pico Digital
- P\N: CA-30RK1000
Do you have questions?
Please contact our experts for assistance.
Description
Pico Digital 1 GHz Broadband Push-Pull Headend Amp 30dB Gain (CA-30RK1000)
- 158 Channel frequency range 54~1000MHz (CATV 2~13, A1~A5, A~ZZZ, 89~158, UHF 14~69) (CA-30RK10000)
- 30dB Gain for optimal carrier to noise ratio and superior picture quality
- ±0.5dB Flatness across band provides low distortion and excellent frequency response
- Front panel controls and test point enable easy setup and monitoring
- Built-in lightning and line voltage surge protection protects the unit from damage
- Low noise performance, eliminating addition of offending picture static
Specifications
BANDWIDTH: (CA-30RK1000) 54~1000MHz
GAIN: 30dB
FLATNESS: 0.5dB
COMPOSITE SECOND ORDER: 70dB
COMPOSITE TRIPLE BEAT: 75dB
OUTPUT TEST POINT LOSS: -30dB
VOLTAGE INPUT: 115VAC
POWER FREQUENCY: 60Hz
POWER REQUIRED: 4Watt
DIMENSIONS: 19 inch (L) x 3 inch (D) x 1.75 inch (H)
WEIGHT: 3.8 lbs.
