Pico Digital 550 MHz High-Gain Distribution Amplifier (CA-50/550)

Pico Digital 550 MHz High-Gain Distribution Amplifier (CA-50/550)

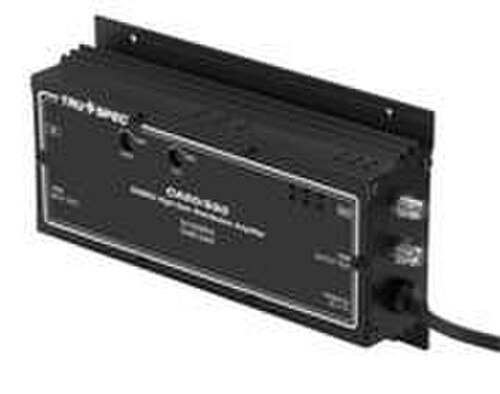

The Pico Macom CA-30/550 is a high-quality push-pull, wall-mounted distribution amplifier that produces signals with extremely low-noise and harmonic distortion. This amplifier is capable of 82-channel operation over the 54-MHz to 550-MHz range, and makes an excellent distribution system amplifier in MDU, CATV, and SMATV systems. Because of its extremely low-noise figure and low distortion, the CA-30/550 is ideally suited for use in larger networks where amplifier cascading is required.

In expanding bi-directional broadband systems, Pico Macom's PIDA series bi-directional amplifiers should be used. 30 dB gain for optimal carrier-to-noise ratio and superior picture quality Employs state-of-the art hybrid push-pull technology for distortion-free audio and video quality Adjustable slope and gain controls for easy system balancing Easy-access controls and low-loss (- 20 dB) test point enable simplified setup and performance monitoring Shielded enclosure provides over 95-dB of RFI shielding performance reducing leakage and ingress Built-in lightning and line voltage surge protection protects the unit from damage.

• 30 dB gain for optimal carrier-to-noise ratio and superior
picture quality
• Employs state-of-the art hybrid push-pull technology for
distortion-free audio and video quality
• Adjustable slope and gain controls for easy system
balancing
• Easy-access controls and low loss (-20 dB) test point enable
simplified set-up and performance monitoring
• Shielded enclosure provides over 95 dB of RFI shielding
performance, reducing leakage and ingress
• Built-in lightning and line voltage surge protection
protects the unit from damage

BANDWIDTH: 54-550 MHz
GAIN (Fwd): 30 dB
MAX. OUTPUT (82 Ch.): 43 dBmV
FLATNESS: 0.5 dB
NOISE FIGURE (Fwd): 4.5 dB
COMPOSITE SECOND ORDER (Fwd): 70 dB
COMPOSITE TRIPLE BEAT (Fwd): 61 dB
INPUT TEST POINT LOSS: 20 dB
POWER INPUT: 115 VDC
POWER REQUIRED: 4W
DIMENSIONS: 4.5”H x 8.0”W x 2.75”D
(11.43H x 20.32W x 6.99D cm)
WEIGHT: 2.3 lbs (1.04 kg)
