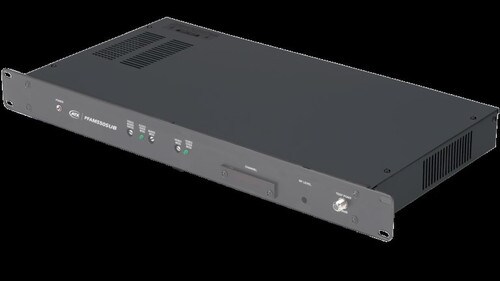

Pico Digital 550MHz Sub-Band Extended Agile A/V Modulator (PFAM550SUB)
- Brand: Pico Digital
- P\N: PFAM550SUB
Do you have questions?
Please contact our experts for assistance.
Description
Pico Digital 550MHz Sub-Band Extended Agile A/V Modulator
Key Features
- 60dBmV MIinimum output for a 64dB in-band carrier to noise ratio provides superior picture quality
- 82 Channel frequency range 54~550MHz (CATV 2~13, A1~A5, A~PPP) (PFAM550)
- 89 Channel frequency range 5.75~550MHz (CATV T7~13, 2~13, A1~A5, A~PPP) (PFAM550SUB)
- Sub-band operation enables remote TV origination, making it ideal for institutional cable systems
- Front panel DIP switch-controlled phase-locked loop for solid drift-free output on any channel
- SAW filtered for superior adjacent channel performance enables drop-in channel expansion
- Front panel test point for easy RF level system monitoring
- Composite audio-video IF loop provides compatibility with encoders, ghost cancelers and video-override applications
- IRC and HRC offsets available allow for easy frequency settings in systems using offset channels
- Double heterodyne conversion provides superior spurious harmonic output suppression
- BTSC stereo compatible pre-emphasis disable switch provides pass-through forstereo signals
- UL Approved
Specifications
Output Frequency Range | 5~550MHz |
Tuning | Agile |
RF Output Level (min) | (PFAM550SUB) 60dBmV |
RF Output Level (min) | (PFAM550) 57dBmV |
Carrier to Noise (In-band) | 64dB |
Carrier to Noise (Out of band) | 66dB |
Spurious Output | >65dB |
Composite IF Output Level | 30dBmV |
Video Frequency Response | ±1.5dB |
Video Signal to Noise | 53dB |
Audio Input Type | Monaural/MTS Baseband |
Audio Frequency Response | 50~15,000Hz |
Video Input Connection | 75Ω F-Female |
Audio Input Connection | 5KΩ F-Female Unbalanced |
RF Output Connection | 75Ω F-Female |
Voltage Input (PFAM550SUB) | 90-240VAC |
Voltage Input (PFAM550) | 115~240VAC |
Power Output Receptacle | Yes |
Dimensions | 19” (L) x 12” (D) x 1.75” (H) |
Weight | 8.5 lbs. |
